| Swing | 35.43" | 899.92 mm |
| Machining Length | 33.46" | 849.88 mm |
| # Axis | 3 | 3 |
| Chuck Size | 24" | 609.6 mm |
| Power | 60 hp | 44.7 kW |
| Max RPM | 1,500 RPM | 1,500 RPM |
| Turning Dia | 35.43" | 899.92 mm |
| Tailstock | No | No |
| Live Tooling | Yes | Yes |
| Sub Spindle | No | No |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Weight | 33000 lbs | 33000 lbs |

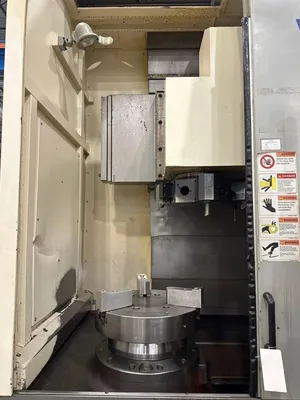

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
Specifications:
Capacity:
Max Turning Diameter: 35.43″
Max Swing Over Bed: 35.43″
Max Working Height Under Rail: 33.46″
Travel:
X Axis Travel: 18.90″
Z Axis Travel: 34.64″
C Axis: 0.001°
Rapid Traverse X Axis: 590 IPM
Rapid Traverse Z Axis: 590 IPM
Spindle:
Spindle Nose: A2-15
Spindle Speed: 1500 RPM
Spindle Motor: 60 HP
Turret:
Turret Capacity: 12 Stations ( 6 Positions Live)
Live Tool Motor: 7.5 HP
Turret Index Time: 1.7 Second
Tool Size: 1.25”
Boring Bar Size: 2.4”
Tool Holder Type: VDI
General:
Power: 75 kva, 220v / 3-Phase
Overall Dimensions: ″ X ″ X ” High
Weight: 33,000 lbs. Approx.
Fanuc 21i-TB CNC Control
24″ 3-jaw Hydraulic Chuck
12 Station Turret – 6 Positions Live
Servo Controlled Full C-Axis on Spindles
High Pressure Coolant System
Chip Conveyor
Books & Manuals
MPG Handwheel Control
Foot Switch
Statics & Live Tool Holders
