| Swing | 20" | 508 mm |
| Power | 2 hp | 1.5 kW |
| RPM | 1,740 RPM | 1,740 RPM |

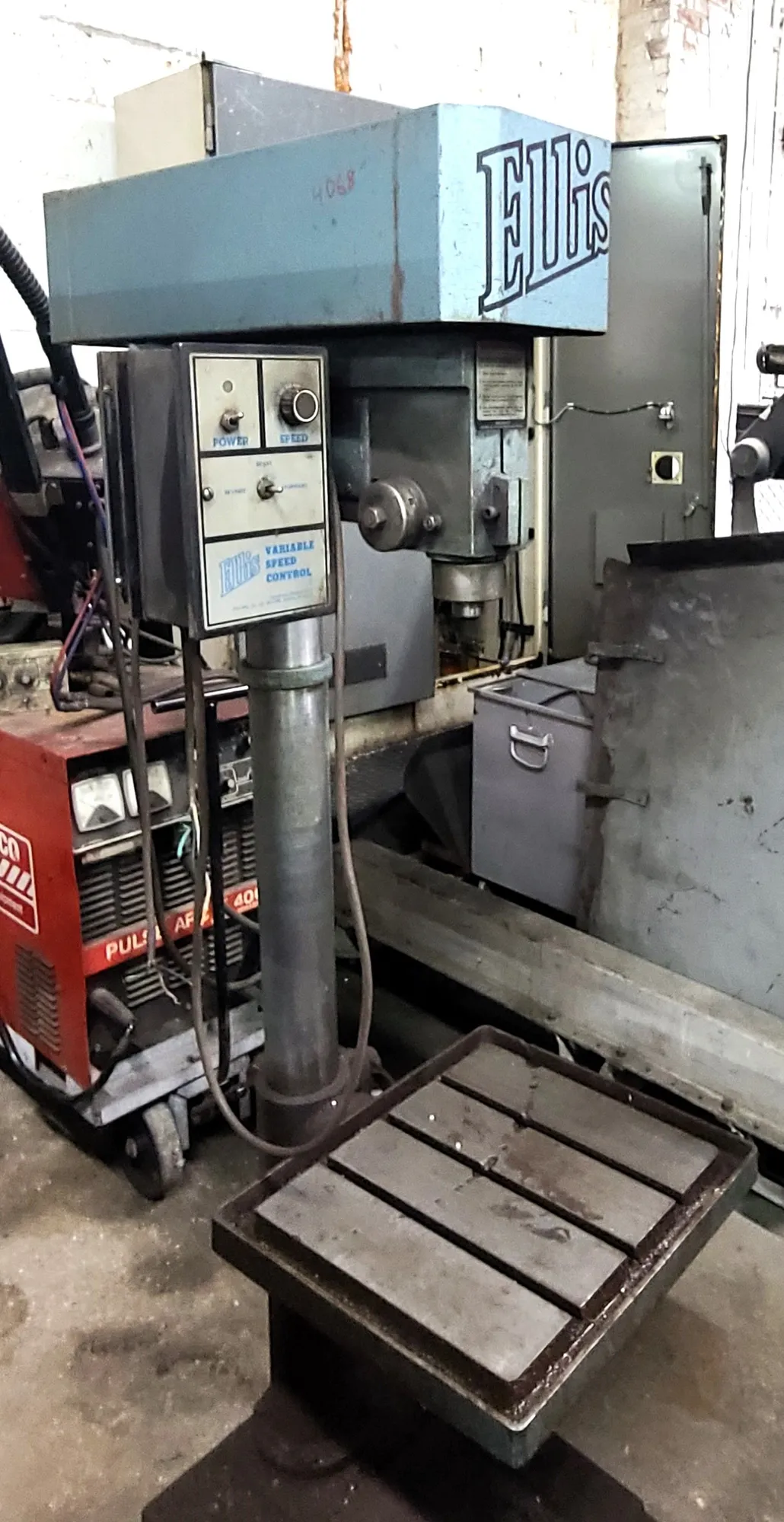

FLOOR MODEL
20" SWING
4-3/4" SPINDLE TRAVEL
#3 MT SPINDLE TAPER
17" X 18-3/4" T-SLOTTED TABLE
WITH COOLANT TROUGH
13" X 16 1/2" T-SLOTTED SURFACE ON BASE
VARIABLE SPINDLE SPEEDS .
WITH FORWARD/BRAKE/REVERSE SWITCH
SPINDLE TO TABLE 27 1/2"
SPINDLE TO BASE 47-1/2"
2 HP DC MOTOR
MACHINE WIRED FOR AC 220 VOLTS/1 PHASE
APPROXIMATE WEIGHT 400LBS.
SPECIFICATIONS PER MANUFACTURER MANUAL
