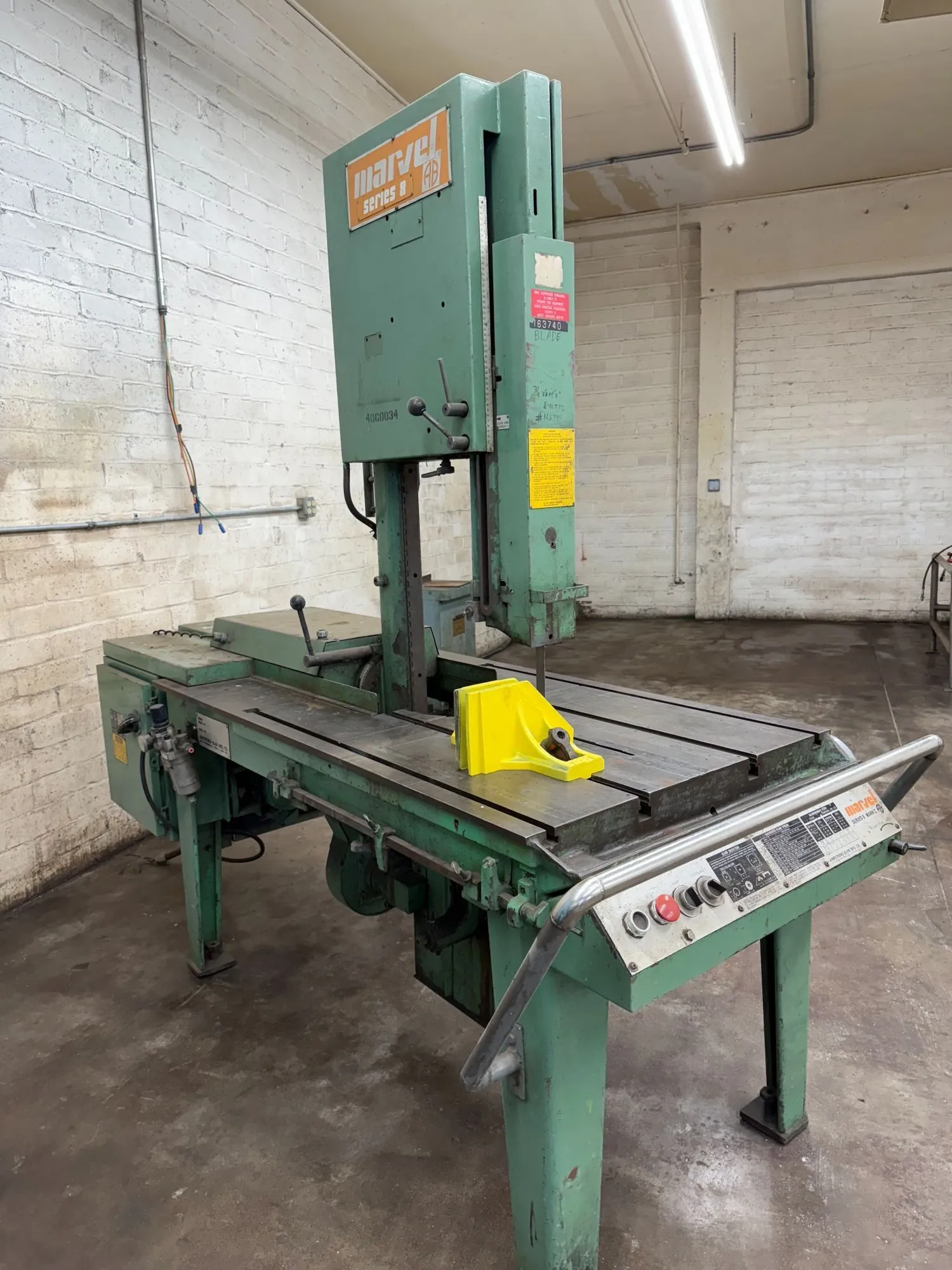

MARVEL SERIES 8 MARK 1 VERTICAL BANDSAW
| Blade Width | 1" | 25.4 mm |
| Blade Length | 176" | 4,470.4 mm |
| FPM | 50-450 | 50-450 |
MAKE: MARVEL
SERIES: 8
MODEL: MK-1
S/N: 822489-4
Specifications:
Cutting Capacity @ 90°: 18″ x 20″
Cutting Capacity at 45°: 18″ x 13″
Blade Speeds (Infinitely Variable): 50 – 450 FPM
Feed Range: 0 – 140 LBS
T-Slotted Work Table: 24-1/2″ x 33″
Miter Cutting Column & Blade Tilt: Up to 45° Left & Right
Blade Size: 14’6″ x 1″ x 0.035″
Motor HP: 2
Electrical: 480V/3PH
Approx. Shipping Weight: 2,750 Lbs.
Approx. Shipping Dimensions: 102″ L x 56″ W x 94″ H
PRICE: $9,500.00
***SPECIFICATION SHOWN ARE TO BE
USED AS A GUIDELINE ONLY. IT IS
THE CUSTOMER RESPONSIBILITY TO
CHECK FOR SIZE AND FEATURES BEFORE
PURCHASING WE WILL NOT BE RESPONSIBLE
FOR ERROR OR OMISSIONS.
