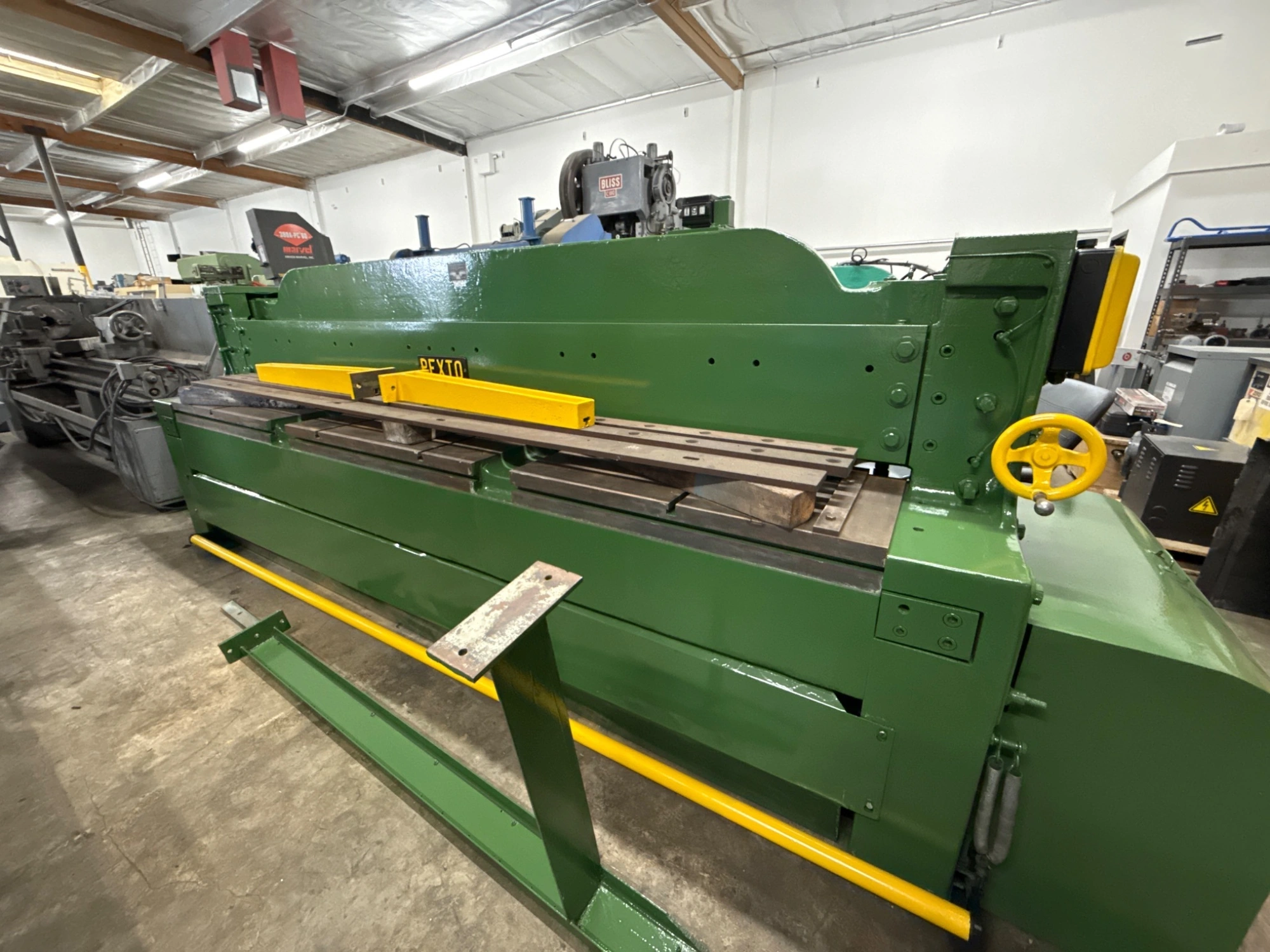

Pexto 10-U-10 Mechanical Power Squaring Shear available: 10' x 10 Ga. capacity. Features include squaring arm, 2 sheet supports, and rear operated back gauge. Specs: 10 Ga. mild steel, 12 Ga. stainless, 60 strokes/min, 7.5 HP motor, 3 Phase, 220/440V.
| Max Gauge | 10 gauge | 10 gauge |
| Length of Blade | 120" | 3,048 mm |
| Hyd/Mech | Mech | Mech |
| Power | 7.5 hp | 5.6 kW |
| SPM | 60 strokes/min. | 60 strokes/min. |
| Dimensions | 96 x 166 x 60 | 96 x 166 x 60 |
| Weight | 17000 lbs | 17000 lbs |
Pexto 10-U-10 Mechanical Power Squaring Shear - 10' x 10 Ga. #7196 #2
SPECIFICATIONS:
Capacity Mild Steel: 10 Ga.
Capacity Stainless Steel: 12 Ga.
Cutting Length: 120"
Rake Per Foot: .312
Strokes Per Minute: 60
Motor: 7.5 HP
Voltage: 3 Phase, 220/440 Volt
Dimensions: 96" x 166" x 60" H
Weight: 17,000 lbs.
EQUIPPED WITH:
Squaring Arm
(2) Sheet Supports
Rear Operated Back Gauge
