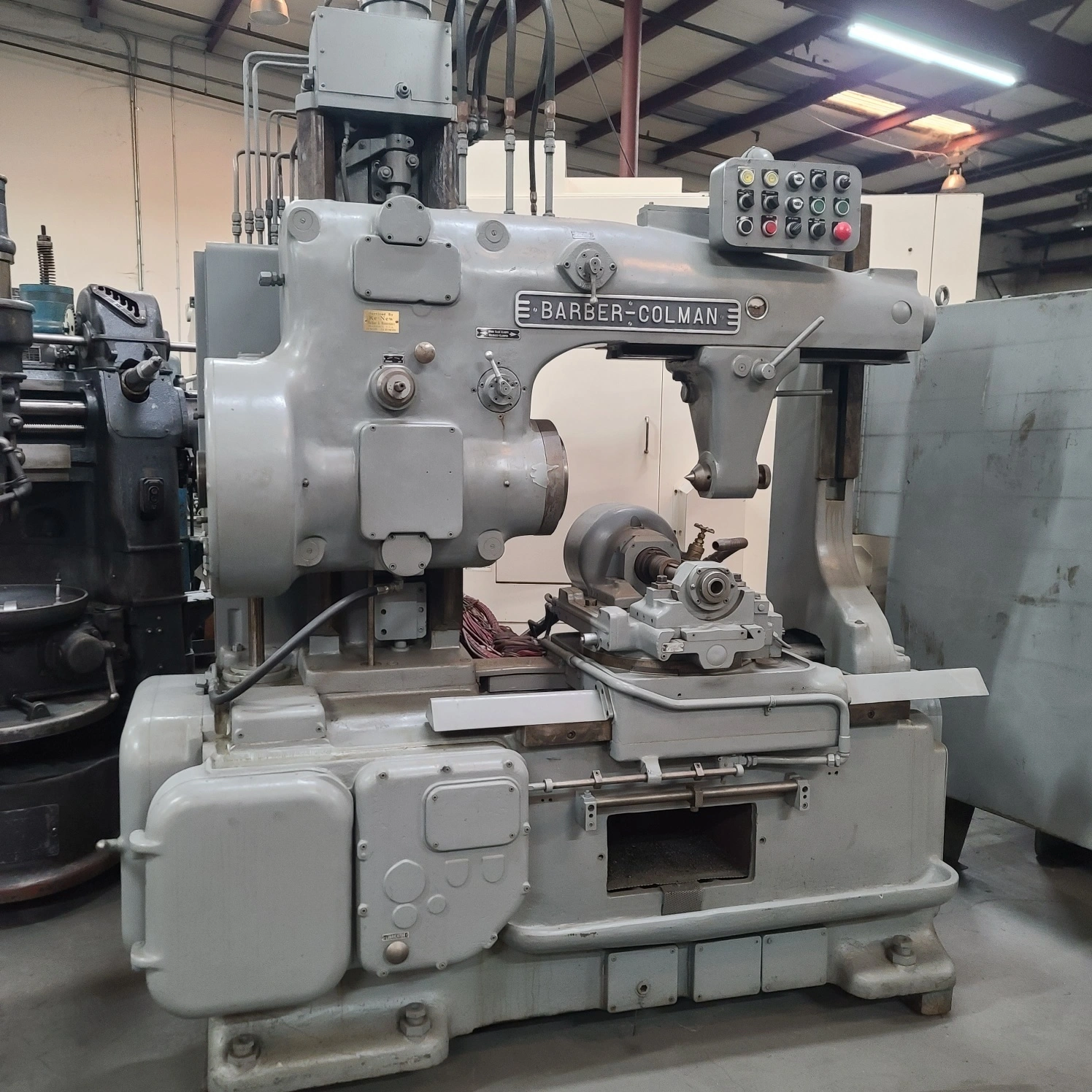

Barber-Colman model 22-15 horizontal hobber , 22" diameter , 15" cut length, 2-cut cycle , autocycle , excellent s/n 923
| Max Workpiece Diameter | 22" | 558.8 mm |
| Max Diametral Pitch | 3.5 dp | 3.5 dp |
| Horz/Vert | Horz | Horz |
| Weight | 12000 lbs | 12000 lbs |
Barber Colman Horizontal Hobber
Model 22-15 Multi-cycle
s/n 923
machine is equipped with 2-cut cycle option
This machine can be inspeceted with proper notice under power
in our statesville NC warehouse in good operating condition
SPECIFICATIONS:
*Max OD.................................................................22"
*Max Cut Length.........................................................15"
*Maximum Pitch.........................................................3.5 DP
MACHINE IS EQUIPPED WITH:
* Large Swing Gear Hob
* Double thread index worm
* 4-1/8" hole through the work spindle
* auto cycle
* 2-cut cycle
* auto Hob shift
* hyd tailstock pressure
* Hydraulic Unit
* 1 Hob Arbor
* Misc. Change Gears
Visit our website to see this and other horizontal gear hobbers
we can show you this excellent machine under power with proper
notice . let us know if you require and further info or visit
www.pisellient.com to request a formal quote on line!!
