USED GOULD & EBERHARDT 12H

Overview
Manufacturer:
GOULD & EBERHARDT
Model:
12H
Stock #:
16633981
Status:
For Sale
Description

Gould & Eberhardt Model 12H vertical gear hobber . 13" diameter capacity w/support, 18" diam w/out support, 4 DP , good condition

Specifications
Max Workpiece Diameter13"330.2 mm
Weight7,500 lbs7,500 lbs

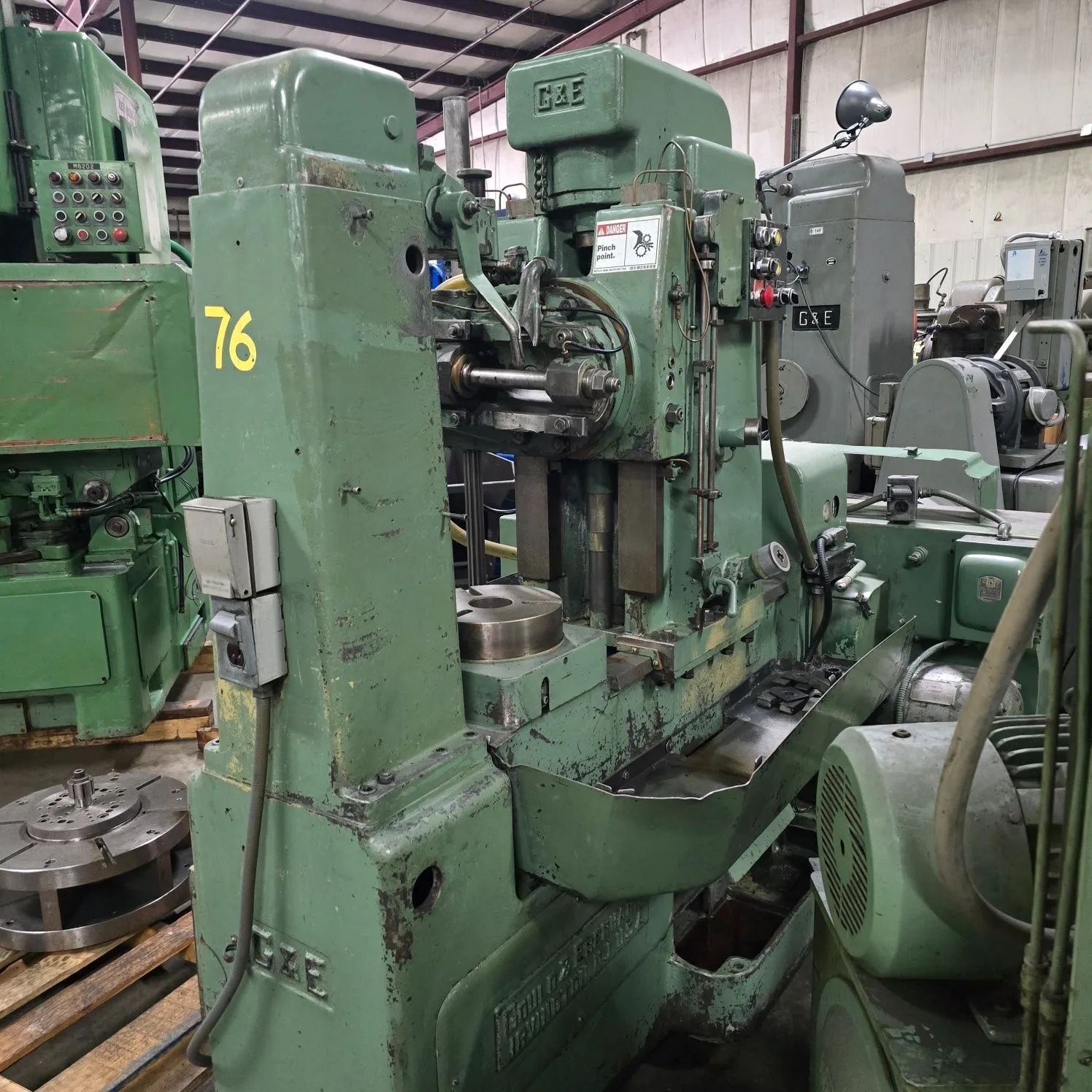

Gould & Eberhardt Vertical Gear Hobber
model 12H
s/n 5370A7

Good little job shop vertical Gear Hobbing Machine

general machine specs to follow:
Max diameter w/ support 13"
Max diameter w/out support 18"
Max face width 10"
Max pitch 5 DP
Max hob diameter 5"
Diameter work table 10"
Min center hob/ work 0"
hob speed range 50-300
main drive motor 5 HP
floor space 79" x 100"
machine height 75" tall
machine weight 7,000 lbs

Machine equipped with the following
1 hob arbor
push button controls
tailstock support for pinions
machine Constant 10/N
Misc change gears
manual

Machine can be inspected under power in our Statesville NC plant
machine can be put under power for inspection with proper notice
Please se this machine on line at WWW.PiselliEnt.com or or to
request formal quote on line . many machines in our stock
