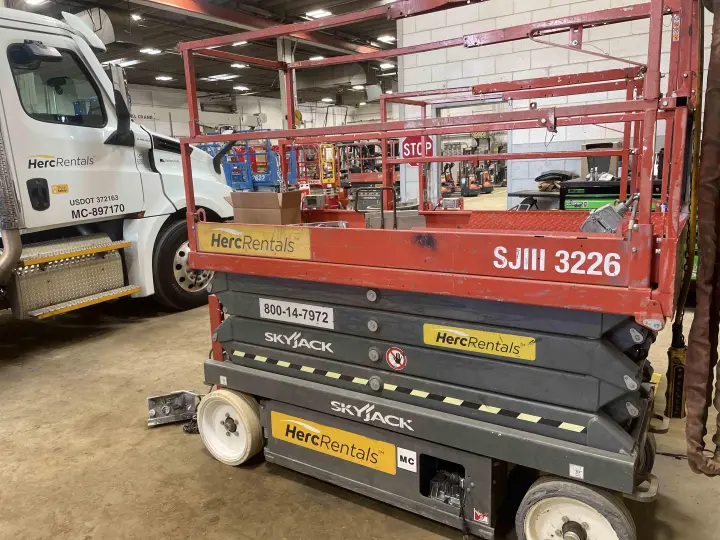

SKYJACK SJIII-3226 used scissor lift immediately available.
Maximum platform height of 26 feet.
Good Condition
| Capacity | 500 lb | 226.8 kg |
| Number of Persons | 2 | 2 |
| Max lift height | 26ft | 26ft |
| Driven Height | Full Height | Full Height |
| Voltage | 24V | 24V |
| System Pressure | 3000 psi | 3000 psi |
| Lift Pressure | 1300 psi | 1300 psi |
| Wheel Load | 1800lb | 1800lb |
| Weight | 4135 | 4135 |
| Operating Hours | 178 HOURS | 178 HOURS |
| Dimensions | 91.5 x 32 x 84.7 | 91.5 x 32 x 84.7 |
| Weight | 4135lbs | 4135lbs |
Specifications:
All OEM specs are for information only.
All specs and Equipped-with Items must be confirmed by the buyer.
Work Height 32’ (9.75 m)
Raised Platform Height 26’ (7.92 m)
Lowered Platform Height 45” (1.14 m)
Overall Width 32” (0.81 m)
Overall Length 91.5” (2.32 m)
Stowed Height (Rails Up) 84.7” (2.15 m)
Stowed Height (Rails Down) 70.6” (1.79 m)
Platform Width (Inside Dimension) 28” (0.71 m)
Platform Length (Inside Dimension) 84” (2.13 m)
Extension Deck (Roll Out) 3’ (0.91 m)
Ground Clearance (Stowed) 3.5” (8.89 cm)
Ground Clearance (raised) 0.75” (1.90 cm)
Wheelbase 69” (1.75 m)
Weight 4,135lbs (1,876 kg)
Turning Radius (Inside) 50” (1.27 m)
Turning Radius (Outside) 108” (2.74 m)
Maximum Drive Height Full Height
Capacity (Overall) 500lbs (227 kg)
Distributed Capacity (Main Platform) 250lbs (113 kg)
Distributed Capacity (Extension Deck) 250lbs (113 kg)
Local Floor Load (With Rated Load) 130 psi (897 kPa)
Overall Floor Load (With Rated Load) 235 psi (12 kPa)
Maximum # of Persons 2
Tire Size 16 x 5 x 12
AC INVERTER
BATTERIES
BATTERY DISCONNECT SWITCH
SAFTEY INTERLOCK KEY
CONTROL BOX w/METER
ALL RELATED DOCUMENTS, MANUALS, PARTS, & ACCESSORIES available for this unit.
