CHEVALIER ED-252 EDM Sinkers, used condition.
New in 1993
| Power Pack | 30 A | 30 A |
| Table Size-W | 11.8" | 299.72 mm |
| Table Size-L | 23.6" | 599.44 mm |
| X | 11.8" | 299.72 mm |
| Y | 7.9" | 200.66 mm |
| Z | 5.9" | 149.86 mm |
| Weight | 2,000 | 2,000 |

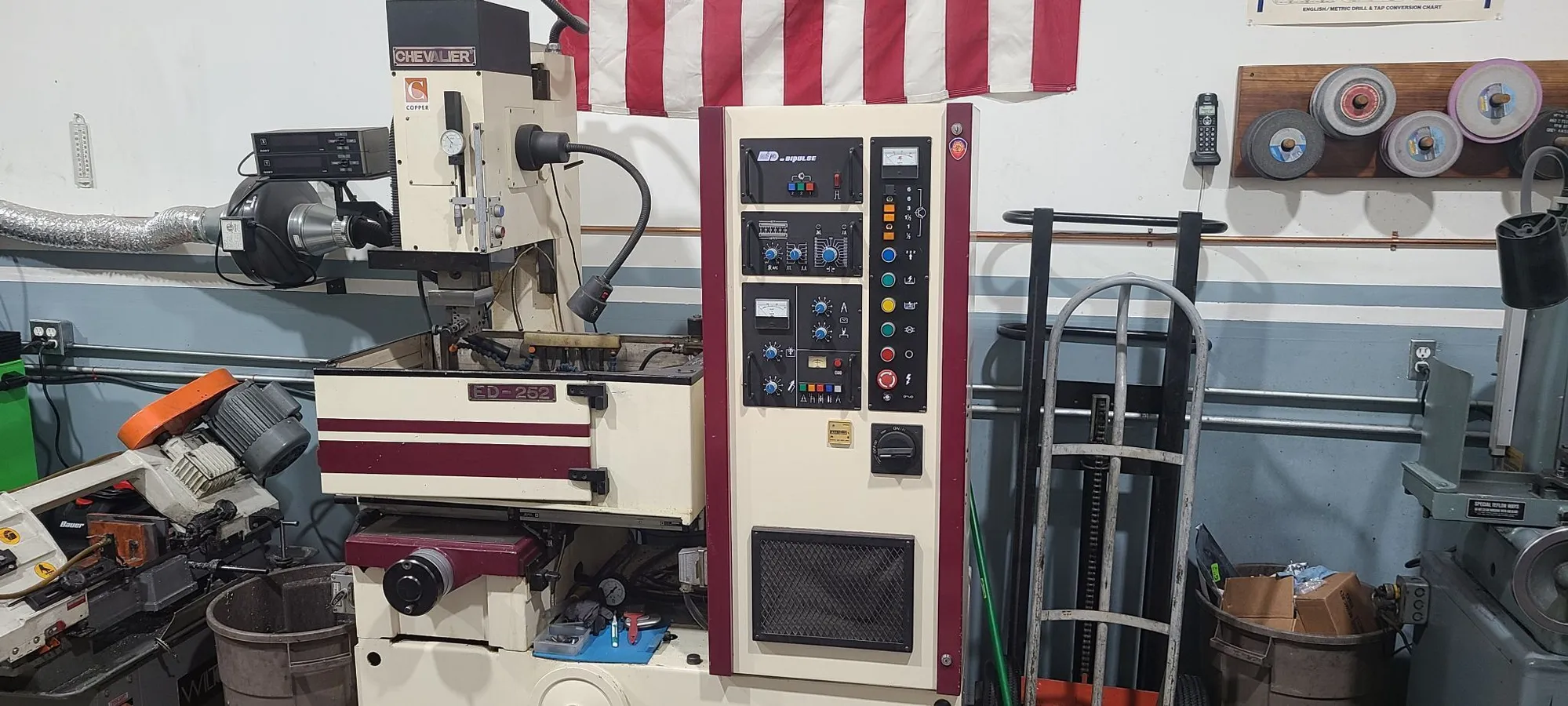

Chevalier ED-252 Ram Sinker EDM
OEM Specification Description:
All specifications are for reference only, and must be confirmed by the buyer
Table 23.6" x 11.8"
Quill Travel 5.9"
Machine Head Travel 7.9"
Work Tank Dimensions 30.3" x 20" x 10.6"
Maximum Electrode Weight 132 lbs.
Maximum Table Load 1,100 lbs.
Dimensions 5.5' x 4' x 6’8"
Weight 2,000 lbs.
Wired 230v / 3 Ph /60Hz
ED-Bipulse control
Sony two-axis DRO
Worklight
Mag-Chuck
30Amp power source
Di-electric Fluid Tank and pump
All available documents, manuals, tools, and parts for this unit
