COORIDINATE SYSTEM ROTATION, 48 WORKPIECE OFFSETS
PART PROGRAM STORAGE LENGTH 512 KB
1000 REGISTERABLE PART PROGRAMS IN TOTAL
LOCATION: NEW JERSEY

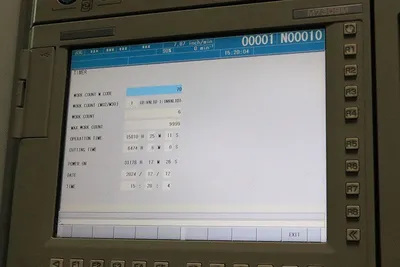

| CNC Control | M730BM W/ MAPPS (FULL FOURTH) | M730BM W/ MAPPS (FULL FOURTH) |
| # Axis | 3 | 3 |
| Pallet-L | 15.7" | 398.78 mm |
| Pallet-W | 15.7" | 398.78 mm |
| Max Pallet Load | 881.8 LBS | 881.8 LBS |
| Pallet Indexing (B-axis) | 1 DEGREE; 2 PALLET STATIONS | 1 DEGREE; 2 PALLET STATIONS |
| X-axis Travel | 22" | 558.8 mm |
| Y-axis Travel | 22" | 558.8 mm |
| Z-axis Travel | 26" | 660.4 mm |
| Spindle Speed | 12,000 RPM | 12,000 RPM |
| Spindle Taper | CAT-40 (60) STATION TOOLCHANGER | CAT-40 (60) STATION TOOLCHANGER |
| Spindle Motor | 25 hp | 18.6 kW |
| # ATC | 40 | 40 |
| Machine Weight | 16750 | 16750 |
| Weight | 999 | 999 |
COORIDINATE SYSTEM ROTATION, 48 WORKPIECE OFFSETS
PART PROGRAM STORAGE LENGTH 512 KB
1000 REGISTERABLE PART PROGRAMS IN TOTAL
- COOLANT SYSTEM
- 2 PALLETS
- 60 STATION AUTOMATIC TOOL CHANGER
- DAIKIN CHILLER
- CHIP CONVEYOR
