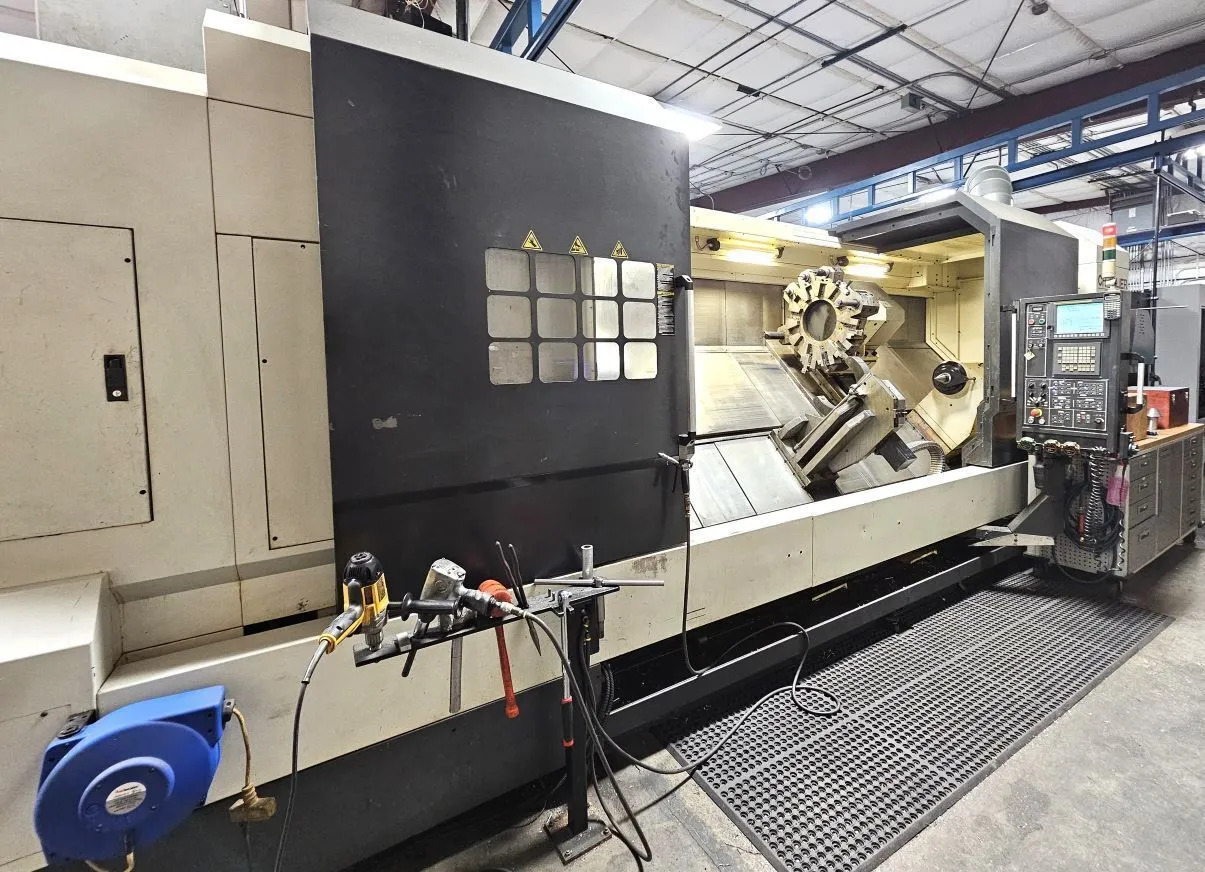

2012 Chevalier FBL-530C CNC 12.5" Big Bore Slant Bed Universal Turning Center
Loaded with Fully Installed 2- Front & Back 32" 3-Jaw 12.5" Big Bore Chucks,
CNC Automatic Larger Capacity Programmable Steady Rest All Installed Options
| Swing | 40.55" | 1,030 mm |
| Centers | 118.11" | 3,000 mm |
| Spindle Bore | 12.5" | 317.5 mm |
| Power | 60 hp | 44.7 kW |
| RPM | 500 RPM | 500 RPM |
| Control | CNC (Fanuc Oi-TD) | CNC (Fanuc Oi-TD) |
| Weight | 51,000. Lbs. | 51,000. Lbs. |
2012 Chevalier FBL-530C CNC 12.5" Big Bore Slant Bed Universal Turning Center
Loaded with Fully Installed 2- Front & Back 32" 3-Jaw 12.5" Big Bore Chucks,
CNC Automatic Larger Capacity Programmable Steady Rest All Installed Options
Main Specifications:
32"-Jaw Big Bore 12.5" Thru-Hole Chucks Front and rear Tru Set Models
Side Discharge Heavy Duty Chip Conveyor
CNC Hydraulic Steady Rest Heavy Duty Size & Bracket
Programable Tail Stock Body & Quil
Fanuc Oi-TD i Series CNC Control
Coolant system
Swing Over Bed 40.55” Swing Over Cross Slide 31.49”
Maximum Turning Diameter 37”
Maximum Turning Length 118.11”
Spindle Nose A2-20 Through Spindle Hole Diameter 12.5”(C)
Spindle Speeds 500 RPM
Spindle Motor 60 HP
Transmission 3-Speed Gear
Approx Weight 51,000 LBS
Special Offered Price:....................$ Please Email Request.
New Costs 400k+ With 12.5" Spindle C Model Thru-Hole, Steady Rest, Workholding.
F.O.B: Machine Prep & Rigging Available in Purchase Pricing!
Machine Ready to Secure and Ship ASAP on Confirmed Orders.
I thank you on you review and look forward to any questions.
Sincerely,
Mark Murphy
Murphy Machinery
Office Phone: 262-534-4124
Mobile Phone: 414-520-0843
Email: markmurphy@murphymachinery.com
Web Site: murphymachinery.com
-
2- 32" 3-Jaw 12.5" Big Bore Chucks, Fully Installed 2- Front & Back
CNC Automatic Larger Capacity Programmable Steady Rest
Heavy Duty Side Discharge Lift Up Chip Conveyor
All Available Installed Tool Holders in Photo on Turret
All Available Books & Manuals
