100 Ton DiAcro #100-12, 146' OA, 126" BH, 24" 1 Axis Automec CNC9X9, 12 ft. x 12 gauge, 10 ft. x 10 gauge, #29468
| Tonnage | 100 T | 90.719 t |
| Overall Length | 146" | 3.7 m |
| Between Housings | 126" | 3.2 m |
| Material Length | 12' | 3,657.6 mm |
| Material Thickness | 12 ga. | 2.3622 mm |
| Stroke | 3" | 76.2 mm |
| Dimensions | 162" L-R x 57" F-B x 116" H | 162" L-R x 57" F-B x 116" H |
| Weight | 22,000 lbs. | 22,000 lbs. |

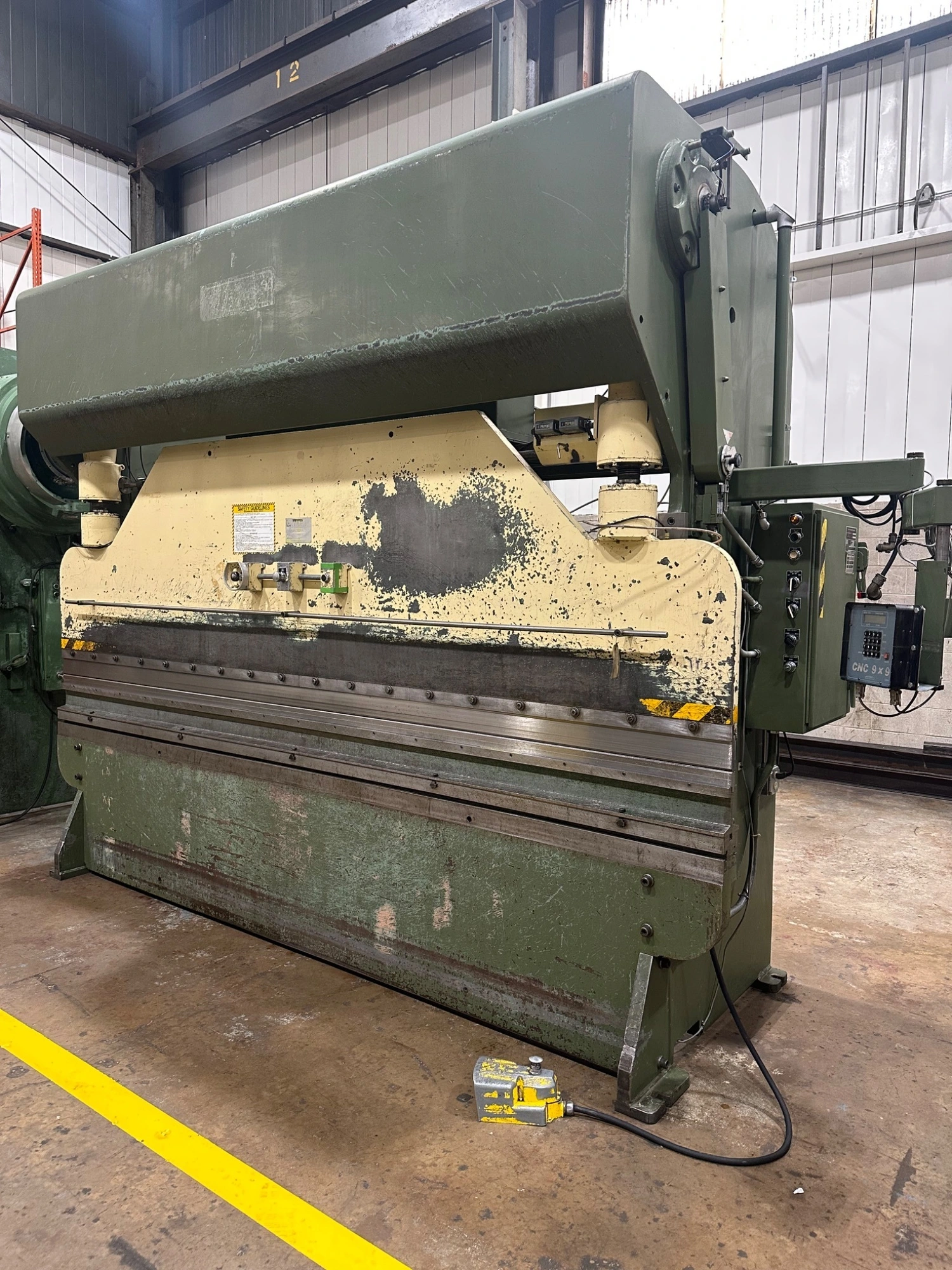

12 FT. X 12 GA. DIACRO #100-12 HYDRA-MECHANICAL PRESS BRAKE
Bending capacities: 12' x 12 ga. mild steel
10' x 10 ga. mild steel
Tonnage capacity: 100 tons
Overall length of bed & ram: 146"
Distance between housings: 126"
Stroke: 3"
Ram adjustment (power): 5" (power)
Shut height S.D.A.U.: 12"
Throat depth: 12"
Width of bed: 4"
Floor to top of bed: 33"
S.P.M. approx.: 22
Weight approx. 22,000 lbs.
Overall dimensions approx. 162" L-R x 57" F-B x 116" H
Serial no. 685107871
Stock no. 29468
FOB ELK GROVE VILLAGE, IL
24" Automec 'CNC 9X9' single axis back gauge with
vertical adjustment & readout in inches & millimeters
5-1/2" high die rail
Dual palm buttons with emergency stop button
Electric foot switch
Pushbuttons for start – stop
Selector switches for setup – off – run; slo - hi-slo – hi-stop-slo;
key selector switch for hand – foot – off
Power ram adjustment with position indicators
Stroke length adjustment
Trabon one shot oil lubrication
Sectional ram die clamps
(5) T-slots in top of bed
Dovetail slots in front & back of bed
Hydraulic pump, driven by
15 HP 1750 RPM 208/230/460/3/60 motor
