1 - Fanuc ArcMate 120iC/10L with R30iB Controller
Serial Number: F144031
Date of Mfg.: 01-2014
Hours on Meter: 1,383
-

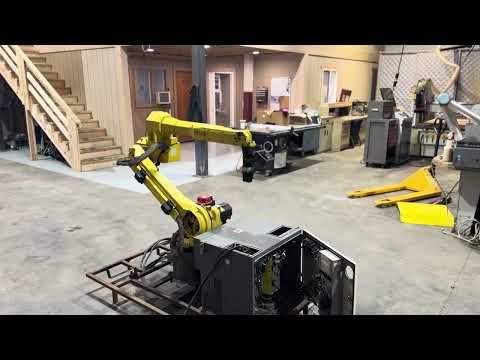

Cleaned and tested in shop, see demo video for details. Extremely low hours, ready to be put back into good use!
This item has been palletized on a 46" x 72" x 52" skid, weighing 900lbs.
-
Offered by K. B. Industries, LLC. Find us on the web at www.kbindustriesllc.com for more information and availability or to request a quote on this unit.
-
Please note that all specifications are obtained from sources deemed reliable but are subject to change without any notice or verification to the buyer.
--
This item is offered for sale subject to prior sale and the buyer's unconditional acceptance of all of the seller's terms and conditions. The buyer is responsible for all shipping arrangements and costs, unless otherwise agreed upon. The seller does not offer terms or conditions, and all items are sold "as is, where is" unless otherwise noted.
K. B. Industries, LLC
| Payload | 10 kg | 22 lb |
| Reach | 2,009 mm | 79.095" |
| Repeatability | 0.0 | 0.0 |
| Number of Axes | 6 | 6 |
| Mass | 255 kg | 562.2 lb |
| Controller Type | R30iB | R30iB |
| Dimensions | 46" x 72" x 52" | 46" x 72" x 52" |
| Weight | 900 LBS | 900 LBS |
Axes 6
Payload: 10 KG (22 lbs)
Reach: 2009 MM (79.09 in)
Repeatability: ±0.1mm (.0039 in)
Robot Mass: 255 KG (562 lbs)
Structure: Articulated
Robot Motion Speed
J1 195 °/s (3.40 rad/s)
J2 175 °/s (3.05 rad/s)
J3 180 °/s (3.14 rad/s)
J4 400 °/s (6.98 rad/s)
J5 400 °/s (6.98 rad/s)
J6 600 °/s (10.47 rad/s)
Robot Motion Range
J1 - 370°
J2 - 260°
J3 - 460°
J4 - 400°
J5 - 380°
J6 - 900°
