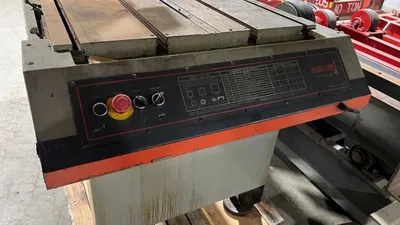

18″ x 22″ Marvel Vertical Tilt Frame Band Saw Series 8-Mark-II
| Work Height | 34.5" | 876.3 mm |
| Throat | 18" | 457.2 mm |
| Power | 5 hp | 3.7 kW |
| Blade Width | 1.25" | 31.75 mm |
| Blade Length | 184" | 4,673.6 mm |
| FPM | 50-450 | 50-450 |
| Dimensions | R-L 102" X F-B 94.7" X Height 90.8" | R-L 102" X F-B 94.7" X Height 90.8" |
| Weight | 2,867 Lbs. | 2,867 Lbs. |
Description:
18″ x 22″ Marvel Vertical Tilt Frame Band Saw Series 8-Mark-II Specifications:
Column in 3° Forward Cant Position:..........................17.5″ X 22″
Throat Cap:..................................................18″
Work Height:.................................................22″
Capacity @ 90°:..............................................18″ X 22″
@ 45°(Right):................................................18″ X 14.5″
@ 45° (Left):................................................18″ x 13″
@ 60° (Right):...............................................18″ 9.7″
@ 60° (Left):................................................18″ X 7.3″
T-Slotted Work Table:........................................24-1/4″ 33″
Table Height:................................................38″
Blade Width:.................................................1.25″
Blade Length:................................................184″
Blade Tension:...............................................40,000 PSI
Speed Range:(Variable with Inverter Drive)...................50 – 450 FPM
Feed Range:..................................................0 – 250 lbs.
Wheel Diameter:..............................................19″
Power:.......................................................2 Hp
Dimensions:..................................................102″ X 72″ X 90″
Weight:......................................................2,867 Lbs. Approx.
Quick-Action Vise:...........................................12″ x 18″ x 6″
Note:
Machine Will be cleaned and cycled.
