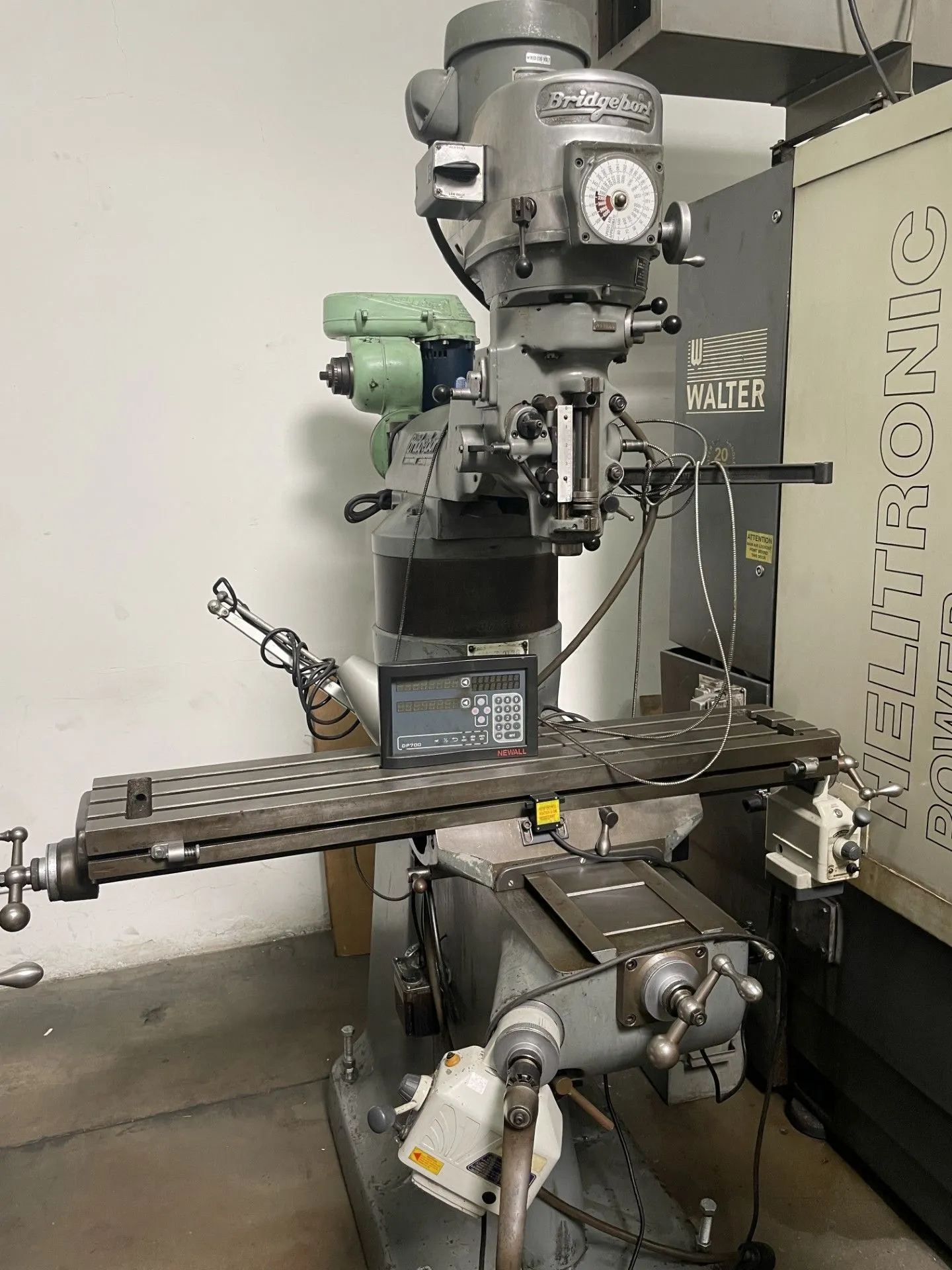

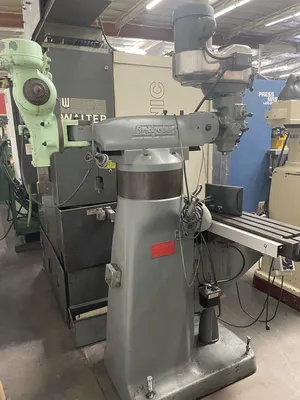

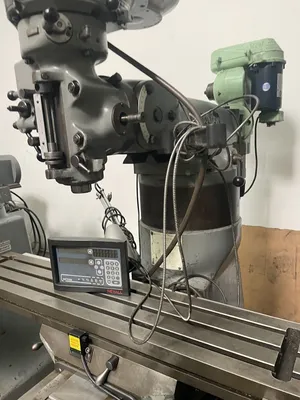

Explore precision with a used Bridgeport 1.5 HP Variable Speed Vertical Mill. Ideal for various milling tasks, this machine offers versatility and reliable performance. Perfect for workshops needing a durable milling solution.
| Table-W | 9" | 228.6 mm |
| Table-L | 48" | 1,219.2 mm |
| Travel-Long | 36" | 914.4 mm |
| Travel-Cross | 12" | 304.8 mm |
| Power | 1.5 hp | 1.1 kW |
| RPM | 4,200 RPM | 4,200 RPM |
| Taper | R- 8 | R- 8 |
| Dimensions | 7' x 10' | 7' x 10' |
| Weight | 2000 Lbs | 2000 Lbs |
Bridgeport Variable Speed Vertical Mill #7567 #1

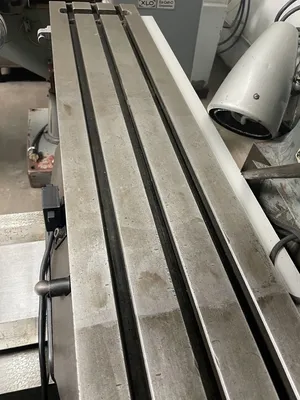

Table Size: 9" x 48"
Table Longitudinal Travel: 36"
Saddle Cross Travel: 12"
Vertical Knee Travel: 16"

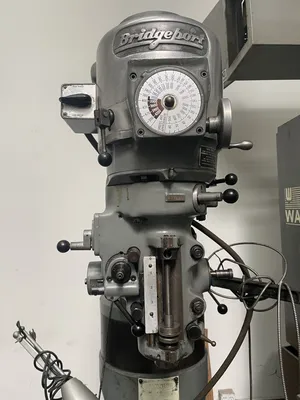

Spindle Speeds (Variable): 60- 4,200 RPM
Spindle Nose: R- 8
Spindle Quill Travel: 5"
Spindle Quill Feeds (3): 0.0015"- 0.003"- 0.006"
Ram Travel: 12"
Motor: 1-1/2 HP
Floor Space: 7' x 10'
Weight: 2,000 Lbs.
Equipped With:

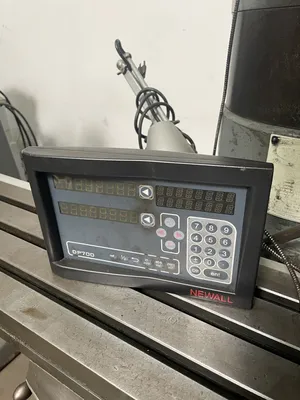

Newall Digital Readout System
Riser Block
X and Knee Power Feeds
Bridgeport Shaping Attachment
One Shot Lube System
Work Light
