| X | 49.2" | 1,249.7 mm |
| Y | 39.4" | 1,000.8 mm |
| Z | 33.5" | 850.9 mm |
| Power | 34.8 hp | 26 kW |
| RPM | 4,500 RPM | 4,500 RPM |
| # ATC | 80 | 80 |
| Taper | 50 Taper | 50 Taper |
| Pallet-W | 31.5" | 800.1 mm |
| Pallet-L | 31.5" | 800.1 mm |
| Control | CNC (Fanuc 18iMB) | CNC (Fanuc 18iMB) |
| Dimensions | 218” x 130” x 128” | 218” x 130” x 128” |
| Weight | 47,500 lbs | 47,500 lbs |
Specifications (subject to buyer verification):
Pallet Size: 31.5” x 31.5”
Pallet Indexing: 1 degree
X – Axis Travel: 49.2”
Y – Axis Travel: 39.4”
Z – Axis Travel: 33.5”
Tool Magazine Capacity: 80 ATC
Spindle Speed: 4,500 RPM
Spindle Taper: Cat 50
Spindle HP: 35
Spindle Torque: 1,106.3 ft/lbs
X – Rapid: 709 IPM
Y – Rapid: 709 IPM
Z – Rapid: 709 IPM
Dimensions: 218” x 130” x 128”
Weight: 47,500 lbs
Equipped With (subject to buyer verification):

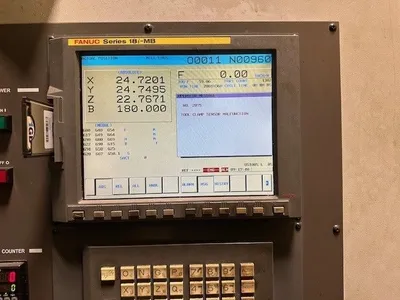

Fanuc 18iMB Controller
Chip Conveyor
1,000 PSI Coolant Through Spindle
Rigid Tapping
3 Speed Geared Head
Automatic Pallet Charger with 2 Pallets
Work Light
Flood Coolant
Some Holders Come with Machine
