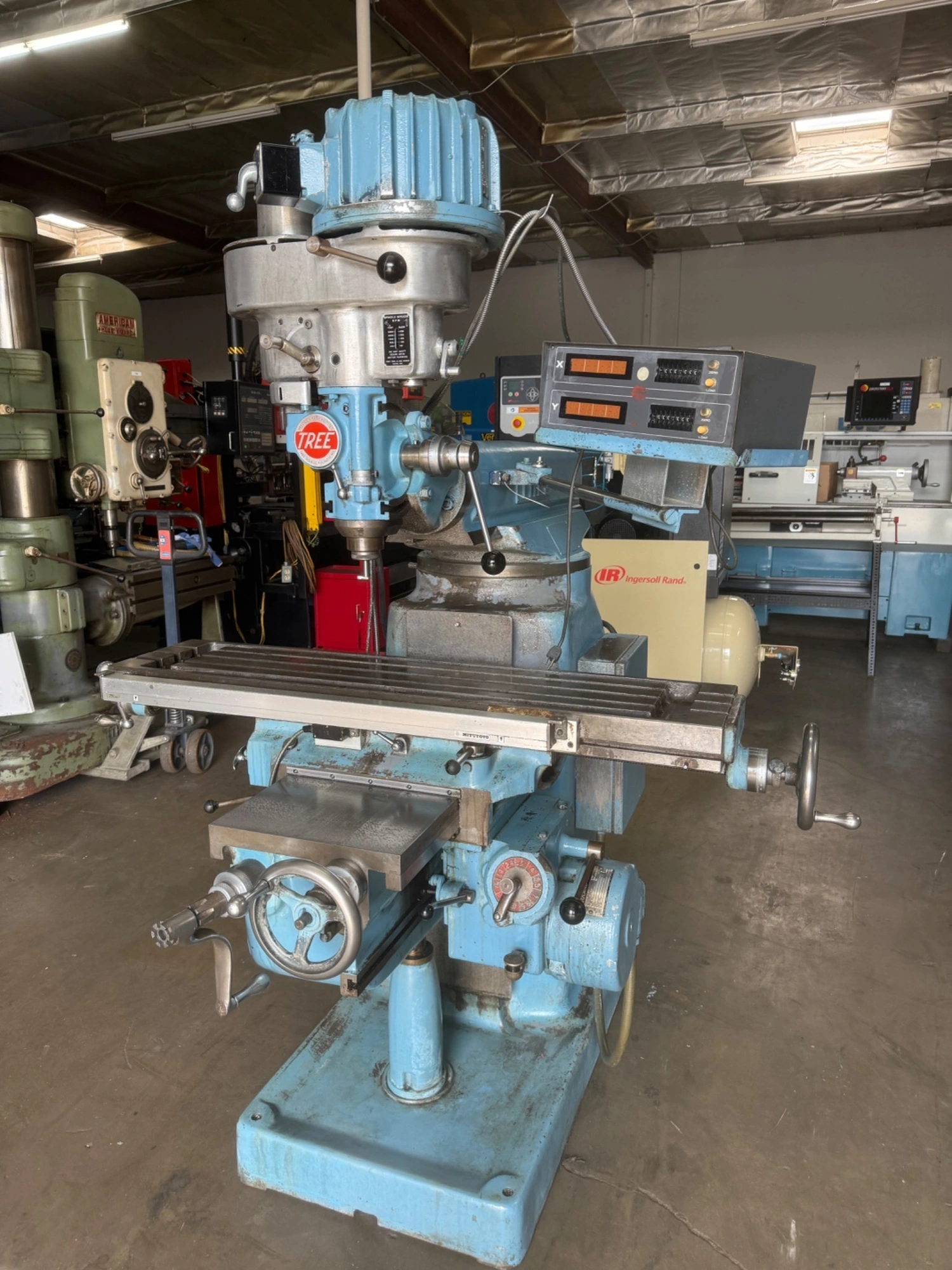

Used TREE 2UVRC Vertical Mill equipped with Mitutoyo Digital Readout, power feeds, and one-shot lube system. Features 10.5" x 48" table, 30" longitudinal travel, and variable spindle speeds up to 3,300 RPM. Compact and efficient for various tasks.
| Table-W | 10" | 254 mm |
| Table-L | 42" | 1,066.8 mm |
| Travel-Long | 25" | 635 mm |
| Travel-Cross | 11" | 279.4 mm |
| Power | 1 hp | 0.7 kW |
| RPM | 3,300 RPM | 3,300 RPM |
Tree 2UVRC Vertical Mill 10 1/2" x 48" #7580 #1
SPECIFICATIONS:
Table Size: 10 1/2" x 48"
Table Longitudinal Travel: 30"
Saddle Cross Travel: 11"
Vertical Knee Travel: 17.5"
Spindle Speeds (Variable): 60- 3,300 RPM
Spindle Nose: Tree Collet
Spindle Quill Travel: 4"
Spindle Quill Feeds (Variable): 0.0015″ to 0.008″
Table Feeds (5): 3/4- 1 3/8- 2 3/8- 4- 7 IPM
Motor: 1 1/2 HP
Dimensions (L x W x H): 60″ x 64″ x 78″
Weight: 2,200 Lbs.
EQUIPPED WITH:
Mitutoyo Digital Readout System
Table Power Feed (Geared)
Cross Saddle Power Feed (Geared)
Knee Power Feed
Box Ways
One Shot Lube System
Work Lamp
