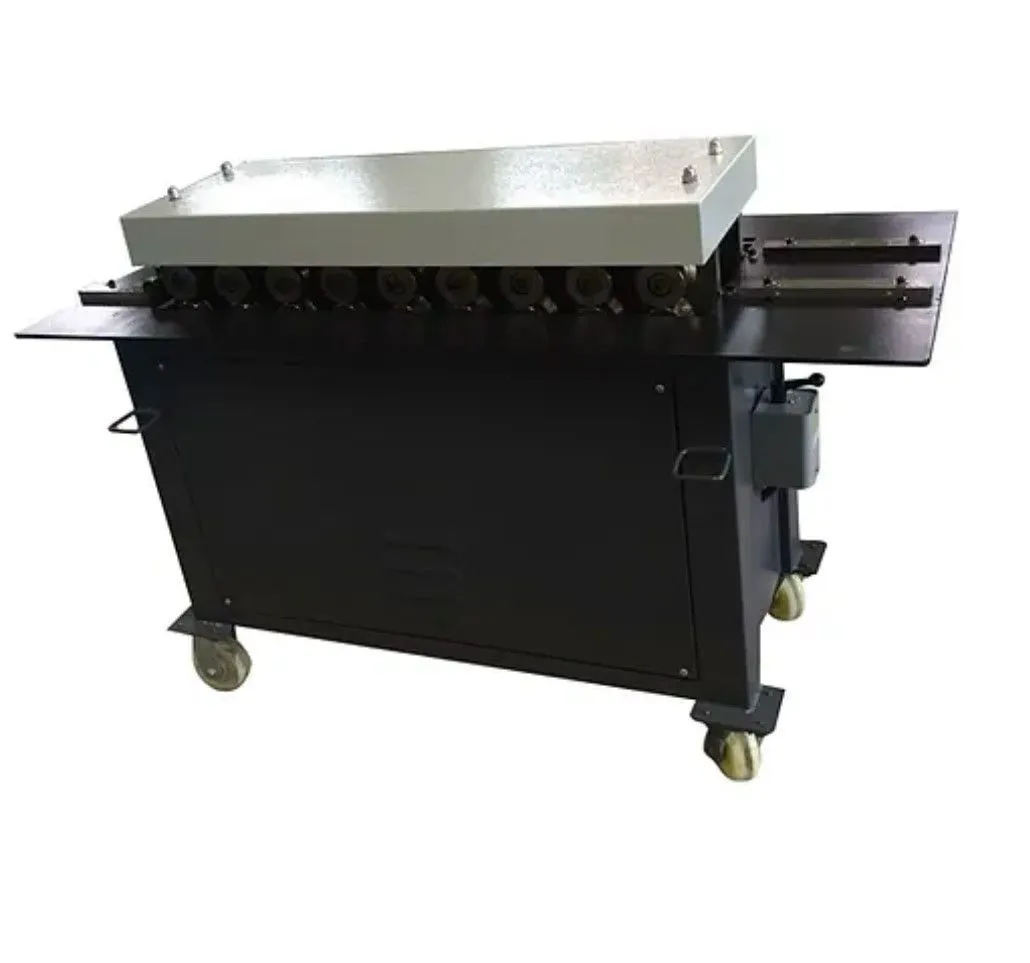

Elevate sheet metal work with the GMC Hemming Forming Machine PL-18HEM. This robust rollformer offers versatility and precision with its 4HP motor. It forms Flattened, Open, Teardrop, and Rope Hems efficiently. ISO 9001 certified. 9 stations, 21 FPM speed.
Take your sheet metal work to the next level with the GMC Hemming Forming Machine, a reliable and versatile solution for professional fabricators. Designed for precision and durability, this machine is built to handle your hemming needs with ease, efficiency, and consistency.
ISO 9001 certified
4HP Heavy Duty AC main motor, 220V, 3 phase
Heavy welded all steel construction for maximum rigidity
One side forms Flattened Hem and Open Hem
One side forms Teardrop Hem and Rope Hem
One year warranty for parts
Standard Equipment:
One set of 9 pairs rolls form Flattened Hem and Open Hem
One set of 9 pairs rolls form Teardrop Hem and Rope Hem
Optional Equipment:
Set of rolls for Pittsburgh lock & Double Seam, 2 in 1……………….. $995.00
Drive Cleat Roll # DCR-18HEM ………………………………. $995.00
Specifications
GMC PL-18HEM
Capacity: Galvanized sheet
Flattened Hem
Open Hem
Teardrop Hem
Rope Hem
Pittsburgh lock , 5/16” width
Double seam
Drive Cleat
24 Ga. to 18Ga.
24 Ga. to 18Ga.
24 Ga. to 18Ga.
24 Ga. to 18Ga.
24 Ga. to 18Ga.
24 Ga. to 18Ga.
24 Ga. to 18Ga.
Station numbers
9 stations with 9 pairs of rolls on each side
Feeding speed
21 FPM
Main motor
Amperage draw
4 HP, 220V, 3PHASE
15Amp
weight, approx
685 LBS
Machine dimensions, LxWxH
Machine shipping dimensions, LWH
60”x25”x40”
62” x 27” x43”
