| Swing | 11" | 279.4 mm |
| Centers | 18" | 457.2 mm |
| Spindle Bore | 1.25" | 31.75 mm |
| Power | 1.5 hp | 1.1 kW |
| RPM | 3,000 RPM | 3,000 RPM |
| Swing Over Cross Slide | 6" | 152.4 mm |
| Dimensions | 72 X 34 X 65 | 72 X 34 X 65 |
| Weight | 2500 | 2500 |

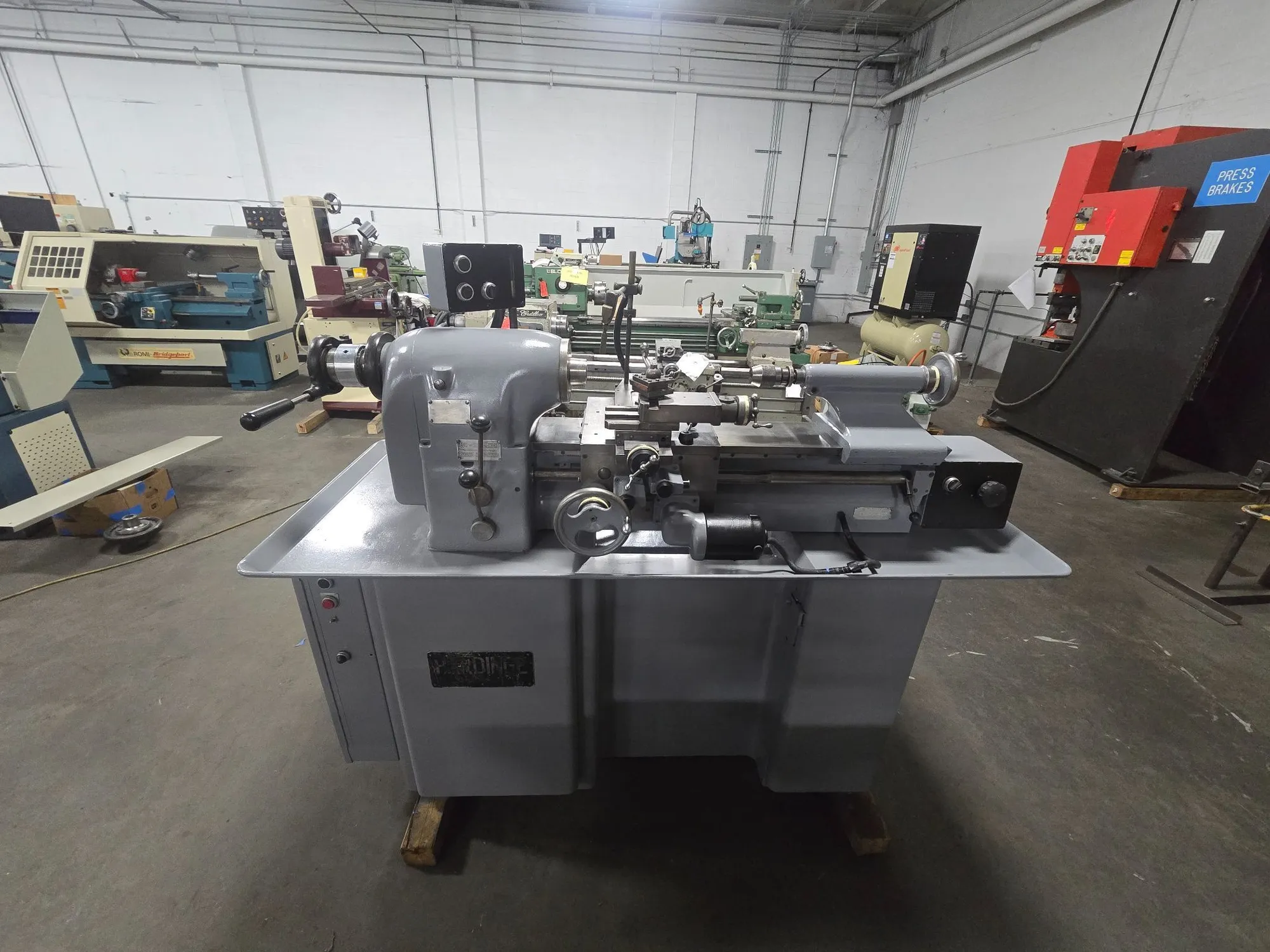

Hardinge Super Precision Toolroom Lathe
Model #: TBF-H
Spindle Motor: 1.5 Hp, 220v, 3ph, 60 Hz
Taper Attachment
Collets and Tooling Included
Control Voltage: 115V
SPECIFICATIONS:
Swing Over Bed: 11"
Swing Over Carriage: 9"
Swing Over Crosslide: 6"
Distance Between Centers: 18"
Spindle thru hole: 1.25"
Spindle Nose Taper: Hardinge 5C
Spindle Speed: 125 – 3,000 RPM
Max. Collet Capacity: 1.0625"
Compound Slide Travel: 3"
Power Feed Range: 0.25" – 7" IPM
Tailstock Travel: 3.75"
Tailstock Taper: #2 MORSE
Approx. Machine Dims: 72" X 34" X 65"
LOC 4E
