| Swing | 27.95" | 709.93 mm |
| Machining Length | 78.74" | 2,000 mm |
| # Axis | 2 | 2 |
| Chuck Size | 15" | 381 mm |
| Bar Capacity | 4.33" | 109.98 mm |
| Power | 50 hp | 37.3 kW |
| Max RPM | 3,000 RPM | 3,000 RPM |
| Turning Dia | 24.4" | 619.76 mm |
| Tailstock | Yes | Yes |
| Control | CNC (Mori MSC-501) | CNC (Mori MSC-501) |

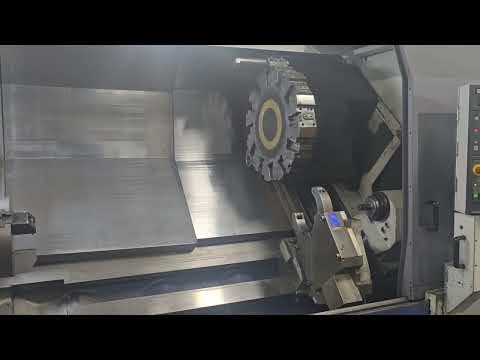

Mori Seiki SL400B/2000 CNC Lathe
Features:
Mori MSC-501 Control
Chip Conveyor
Tailstock
LNS Steady Rest (Range 35mm to 250mm)
Only 13,444.53 Cutting Hours on the machine
Specifications
Chuck Size: 15”
Swing Over Bed: 27.95"
Maximum Turning Diameter: 24.4"
Distance Between Centers: 86.4
X-Axis travel: 13.58"
Z-Axis travel: 78.74"
Rapid Traverse to X-axis: 787 IPM
Rapid Traverse to Z-axis: 944 IPM
Max Spindle Speed: 30 to 3,000 RPM
Spindle Nose: A2-11
Spindle Drive Motor: 50 HP
Spindle Headstock Gear Ranges: 2
No. Positions on Turret: 12
Spindle Through Hole: 4.33"
Rapid Traverse Rate: X=787.4” / Z=944.8” IPM
