1" x 14' Hydraulic Shear
Make an Offer
Inquire Now Buy Now
Activate Pricing

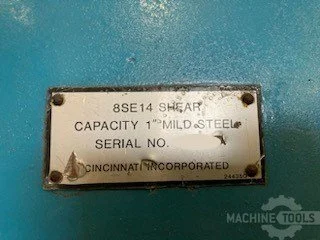

Capacity: 1"
Max Shearing Length: 14'
Back Gauge: 48" Front Operated Power
Squaring Arm: 12'
Distance Between Housings: 3/4"
Advance Speed: 78 IPM
Return Max Rake Speed: 175 in./ft
Depth of Pit Required (For Bed): 15"
Motor: 50 HP
Approx. Weight: 83,900 Lbs
Note: This Machine was Changed to USA 480v/3/60Hz
Self-Compensating Hydraulic Holddowns with Guards: Shear Control Center
Full Length Dovetail Across Bed Face: Madison Kipp Automatic Lubrication System
Pneumatic Ball Transfers
