EDM Hole Popper
Make an Offer
Inquire Now Buy Now
Activate Pricing
X-Axis Travel: 12"
Y-Axis Travel: 8"
Z-Axis Travel: 16"
Control: Siemens 840DI
Electrode Diameters: .004" to .256"
Guide Axis Travel: 10"
Power Source: 57 AMP
Power Requirement: 440-480/3/60
Table: 12" x 12"
Weight: 3,000 Lbs
Note: Controller was Upgraded in 2016 to Siemens 840Di
C-Axis: Chiller
1.0 Gigabyte Program Storage (Minimum): 10.4" TFT Color Monitor
Rotary Encoder Glass Scale Feedback: Single-Cast Rugged Bridge Design for Stability and Accuracy
3.5" Disk Drive: USB Port
Stainless Steel Head & Precision Ballscrews: 5-Axes Pattern Shift & Pattern Offset with Hole Depth Adjustment
CT300 Controller: Custom Programming Screens Written by CEI
Depth Control / Breakout Detection: Ethernet Connection (RS232C)

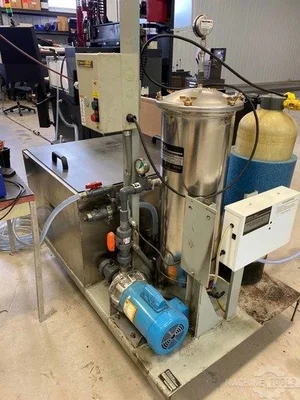

Includes 95 Gallon Dielectric System with Chiller: Nikken Stainless Steel 5-Axis Rotary Table
One-Button Work Co-Ordinate Set-Up: Windows NT Based Operating System
