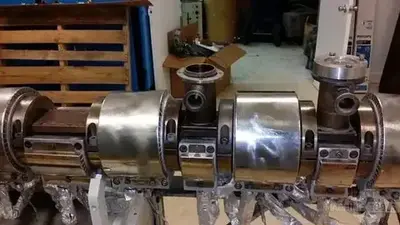

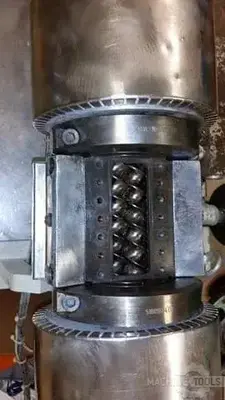

Co-Rotating Twin Screw Extruder
Make an Offer
Inquire Now Buy Now
Activate Pricing
Screw Size: 25mm
Co-Rotating Screw Design: 600 RPM
L/D Ratio: 44:1
Horsepower: 10
Quick Clamps: 10- Barrel Sections / 4- Open Barrel Sections W/Bolt On Blanks
Main Feed: 2- Bolt on Stacks for the Open Sections to Adapt Feed or Vent Options
16 Spare Unused Screw Elements and Misc Other Spare Parts: 80 Hours on Optical Fiber Acrylic Materials Both Solid and Gel-State
Adjusting Vacuum Venting Manifold: Budzar 3-Zone Temperature Control Unit
Flender Gearbox: Hot Oil Temperature Contolled
Vacuum Pump: Reliance Variable Speed Drive
The unit has no side feeder or control panel: Top Sight Glasses
