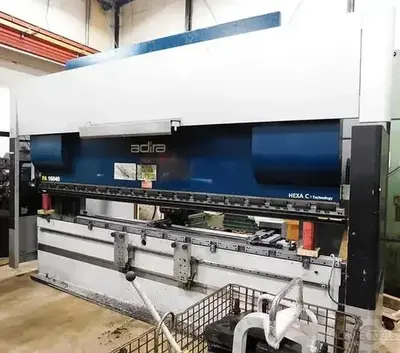

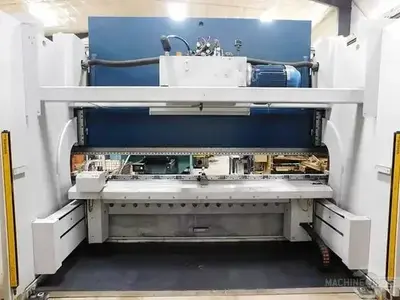

180 Ton x 13' Hydraulic Press Brake
| Tonnage | 160 T | 145.15 t |
| Type | HYD | HYD |
| Overall Length | 3,000 mm | 9.84' |
| Between Housings | 2,550 mm | 8.37' |
| Stroke | 260 mm | 10.236" |
Make an Offer
Inquire Now Buy Now
Activate Pricing
Capacity: 180 Ton
Overall Length of Bed: 13'

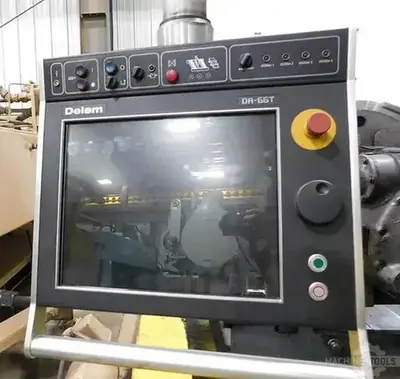

Control: Delem 66T
Back Gauge: 5 Axis
Distance Between Housings: 124"
Stroke: 10"
Throat Depth: 16"
Open Height: 20"
Approach Speed: 354 IPM
Bend Speed: 23 IPM
Return Speed: 354 IPM
X Axis Stroke/Speed: 24/1900 IPM
R Axis Stroke/Speed: 8/470 IPM
Z1/Z2 A X B Stroke/Speed: 3.5-108/2800 IPM
X1 Stroke/Speed: 4/240 IPM
Motor: 22 HP, 480V, 3 PH
Dimensions: 183" x 72" x 115"
Machine Weight: 25,000 lbs
Crowning Laser Safe Guarding: Green Drive System
(2) Front Arm Supports: Rear Guarding
Hydraulic Clamping
