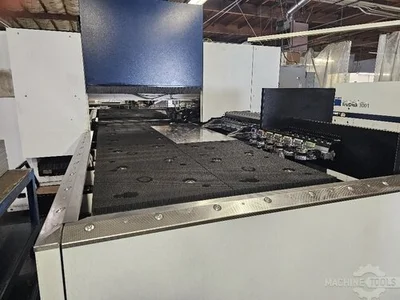

4' x 8' 3kW CNC Fiber Laser/Punch Combo
Make an Offer
Inquire Now Buy Now
Activate Pricing
Table Width: 4.2'
Table Length: 8.3'
Max Wattage: 3,000
Control: Touchpoint HMI
Hours: Operating 24,675, Laseer 22,945
Power Requirement: 460V/60Hz
Y-Axis: 49.21"
X-Axis: 98.43"
Sheet Thickness: 6.4mm Max
Punching Force: 165kN (18 Tons)
Simultaneous (X and Y): 100 m/min
Max. Stroke Rate (Punching): 600 1/min
Max. Stroke Rate (Marking): 1,000 1/min
Max. Axis Acceleration (Punching) X/Y: 10/8m/s
Max. Part Size/Chute: 180mm x 180mm
Flap Size (X x Y): 400 x 1,250mm
Turret Stations: 17
Multitool Tool Changing Time: 2.4 Seconds
Number of Tools/Clamps: 17/3
Approx Dimensions (LxWxH): 247" x 273" x H 86"
Note: Machine will be released when new machine arrives, approx. 4 months
Reliable Ejection of Parts Measuring Max. 400mm x 600mm: Servo Electric Punch Drive
Trudisk 3001 3KW Fiber Source: Universal Cutting Unit
Chiller Unit: Dust Collector
