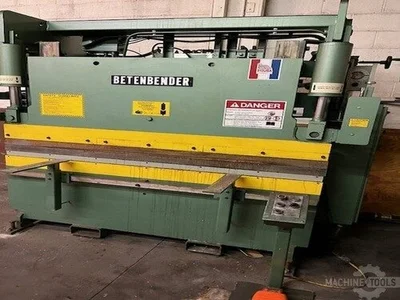

50 Ton x 6' Hydraulic Press Brake
| Tonnage | 50 T | 45.359 t |
| Overall Length | 72" | 1.8 m |
Make an Offer
Inquire Now Buy Now
Activate Pricing
Capacity: 50 Ton
Overall Length of Bed: 6'
Control: Pedastool
Back Gauge: Multi Switch Panel/Foot Switch, 24″ Manual Clamp Type, Adjustable X, Y, and Z
Distance Between Housings: 54 1/2"
Stroke: 8"
Throat Depth: 8"
Open Height: 14"
Closed Height: 6"
Power Requirement: 230/3/60
Width of Bed: 2″
Width of Upper Machined Ram: 1 3/4″
Width of Upper Ram: 2″
Width of Upper End Plates: 36"
Return to Open: 92"
Hydraulic Pressure: 2,750 PSI
Dimensions: 87" x 45" x 104"
Weight: 6,800 Lbs.
10 HP Motor: 3 Speed Ram
Bottom Time Delay: Disconnect Switch
