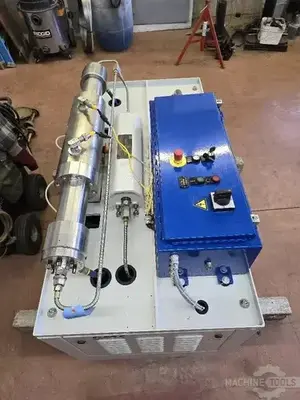

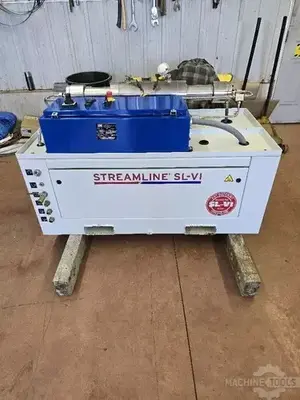

Waterjet Cutting Pump
| Pump Output | 60,000 PSI | 413,684,689.5 Pa |
| Motor | 50 hp | 37.3 kW |
Make an Offer
Inquire Now Buy Now
Activate Pricing
Length: 4.67' (1.4 m)
Width: 2.33' (711 mm)
Height: 2.75' (838 mm)
Weight: 1,800 Lbs.
Nominal Power Rate: 15 HP (11kW)
Max. Continuous Pressure: 60,000 PSI (4,137 Bar)
Max. Water Flow Rate: 0.30 GPM (1.14 L/min)
Max. Single Orifice Diameter (at full pressure): .007 in. (0.178 mm)
Control Voltage & Power Supply: 24V DC 10 Amps DC
Ambient Operating Temperature: Min. 40ºF (5º C), Max. 104ºF (40º C)
Hydraulic Reservoir Capacity: 12 Gallons (45 L)
Cooling Water Flow at 75º (24º C) Water Temperature: 2 GPM (7.6 L/min)
Attenuator Volume: 0.11 Gallons (.41L)
