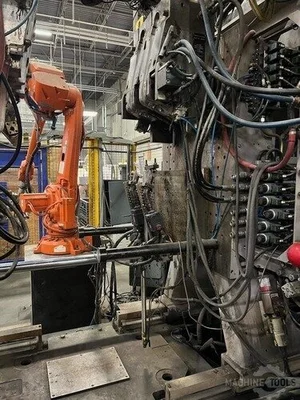

High Performance Single Station Blow Molder for Air Ducts & Liner Production
Make an Offer
Inquire Now Buy Now
Activate Pricing
Number of Heads: Single Heads & Twin Head Include
Approx. Dual Head Container Size: 10 Ltr. (W. Muller Heads)
Head Center Spacing: 200mm Centers (7.87")
Approx. Single Head Container Size: 20 Ltr. (Approx. 10 Lbs. or Greater)
Clamping Force: 400 kN (40 US Tons)
Clamp Stroke: 825mm (32.48")
Max Mold Width: 800mm (31.49")
Max Mold Length: 1200mm (47.24")
Daylight Between Platen: Min. 575mm (22.63") & Max. 1400mm (55.11")
Number of Extruders: One (1)
Extruder Screw Size: 80mm
Extruder Horsepower: 45kw / 60 HP
Control: Beckhoff
Power Requirement: 480v - 3Ph - 60hz (260 Amps)
Control Viltage: 115V
Note: Molds / Tooling not Included
Still in Operation for Inspections
