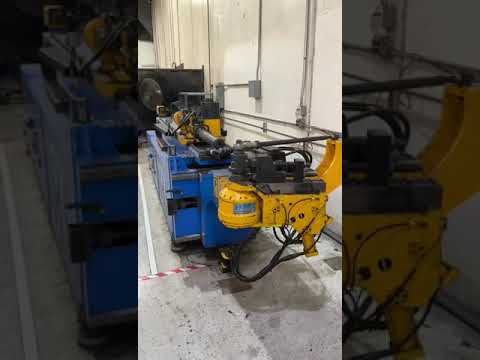

Tube Bender
| Capacity | 2" | 50.8 mm |
Make an Offer
Inquire Now Buy Now
Activate Pricing
Bending/Rolling Capacity (Mild Steel - Round): 2" x 0.08"
Bending/Rolling Capacity (Non-Ferrous - Round): 2" x 0.14"
Bending/Rolling Capacity (Stainless - Round): 2" x 0.05"
Bending/Rolling Capacity (Mild Steel - Square): 1.57" x 0.08"
Bending/Rolling Capacity (Mild Steel - Solid Bar): 0.98"
Max Bending Radius: 1.18" - 8.66"
Max Bending Angle: 190°
Min Rolling Radius: 7D
Max Difference Between Two Radii: 2.56"
Max Length over Mandrel: 125.98"
Max Pipe O.D. / Repeat Feeding: 2"
Working Height: 43.31"
Tooling Center Line Height: 1.57"
DOB (Bending) Speed: 105° / sec
Accuracy of DOB (Bending): +/- 0.01°
DBB (Feeding) Speed: 1724 IPM
Accuracy of DBB (Feeding): +/- 0.00"
POB (Rotation) Speed: 270° / mm
Accuracy of POB (Rotation): +/- 0.1°
Motor for Hydraulic: 5.1 HP
Total Power: 24.1 HP
Max Pressure: 308.00 lbsf / c
