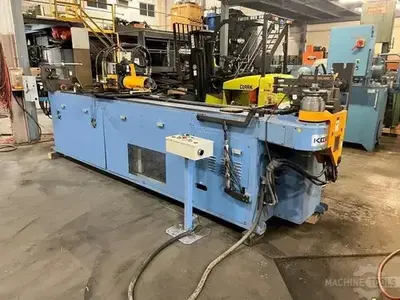

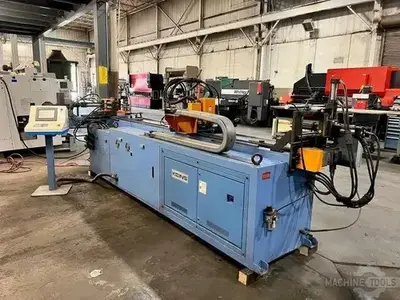

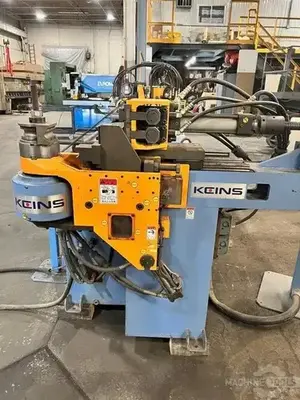

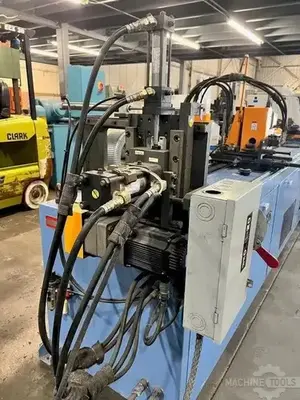

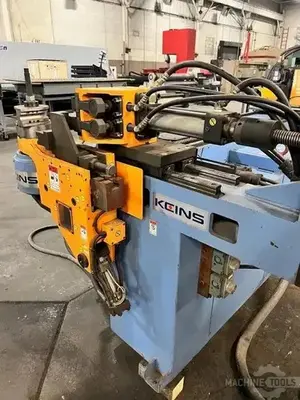

Horizontal Hydraulic CNC Tube Bender
| Capacity | 2" | 50.8 mm |
| Horz/Vert | Horz | Horz |
Make an Offer
Inquire Now Buy Now
Activate Pricing
Number of Axis: 3
Capacity: 2"
Thin Wall Metal Capacity: 1.77" x .07" wall (45mm x 2mm)
Thick Wall Metal Capacity: 1.68" x .1" wall (42.7mm x 2.6mm)
Aluminum Capacity: 2" x .07" wall (50.8mm x 2mm)
Stainless Capacity: 1.5" x .07" wall (38.1mm x 2mm)
Steel Bar Capacity: .70" (18mm)
Square Pipe Capacity: 1.18" x 1.18" x 06" wall (30mm x 30mm x 1.5mm)
Max Bending Radius: 7.87" (200mm)
Max Bend Radius Differential: 2" (50mm)
Max Tube Length: 98" (2500mm)
Feed Speed: 4.72 - 47.2 IPS (120 - 1200 mm/sec)
Plane Speed: 36 - 360 degrees per second
Bending Speed: 25 - 125 degrees per second
Dimensions: 171" X 56" X 64"
Weight: 6,400 Lbs.
