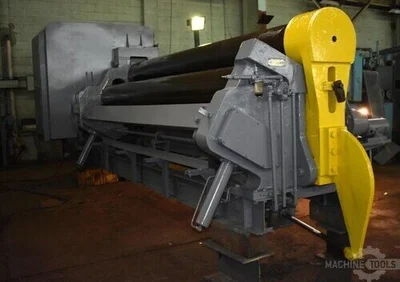

12' x 19/32" Plate Bending Roll
| Length of Rolls | 144" | 3.7 m |
| (Init/Dbl Pinch or Pyramid) | INIT PINCH | INIT PINCH |
| Max Thickness | 0.5" | 12.7 mm |
| Power Rear Roll (Yes/No) | Yes | Yes |
| Power | 20 hp | 14.9 kW |
| Roll Diameter | 14" | 355.6 mm |
Make an Offer
Inquire Now Buy Now
Activate Pricing
Capacity: 12'
Rolling Thickness Boiler Duty: 19/32"
Rolling Thickness Pipe Duty: 29/64"
Top-Roll Diameter: 15"
Bottom-Roll Diameter: 15"
Main Drive Motor: 20 HP/1200 RPM
Rear Roll Adjust Motor: 10 HP/1200 RPM
(2) 3/4 HP Front Roll Adjusting Motors: (2) Front Roll Adjust Motors
10 HP Rear Roll Adjusting Motor: Farval Central Lubrication System
Power Adjustment To Lower Front Pinch Roll: Rear Roll Dial Indicator
SCR Control System w/ Vari-Speed Drive: Air Drop End
