CNC Router
| X | 55" | 1,397 mm |
| Y | 100" | 2,540 mm |
| Z | 12" | 304.8 mm |
Make an Offer
Inquire Now Buy Now
Activate Pricing
Number of Axis: 3
Table Width: 60"
Table Length: 96"
Table Hold Down: Vacuum Hold Down & "T" Slot
Number of Vacuum Zones: 4-Zones

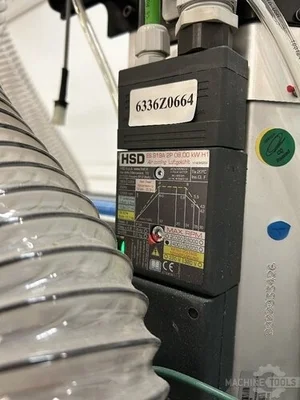

Spindle Mfg: HSD Auto Tool Changing Spindle
Spindle Motor: 10 HP
Tool Changer: (5) Position Auto Tool Changer
Anti-Backlash: X / Dual Drive Y and Z Axis Driven with Industrial Precision Anti-Backlash Ball Screw Drives
Control: Shopsabre Comp. System / WINCNC Hardware & Software
Power Requirement: 208v / 3 Ph 72.5 Amps 50/60 Hz
A Digi-Pas 2 Axis Level: A Jet JCDC-1.5 Dust Collector
A Parkworld 3791 Nema 6-20 Extension Cord: A Pnumatic Plus SAU330 Air Dryer
Digital Brushless A/C Digital Servo Motors with Amplifiers ( X/Y1/Y2 and Z Axis): Maybe "20" Hours of Use
ShopSabre Auto Stabilization Steel Machine Operator Control Stand: Quick Release Dust Skirt - 4" Outlet for Connecting to Dust Collector
4th Axis Port for Future Installation of 4th Axis System: Unist Coolant System for Lubricating Tooling while Cutting Aluminum
Industrial Pop-Up Table Reference Pins (3 on Left Side 2 Along Front): Material Height Touch Pad - Electronic Z Setter
