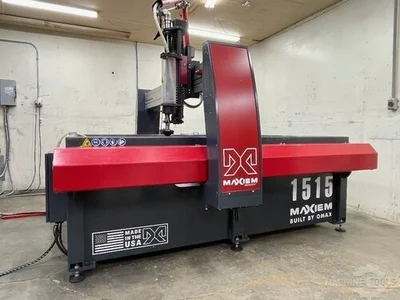

5.2' x 5.2' CNC Waterjet
| X | 1,575 mm | 62.008" |
| Y | 1,575 mm | 62.008" |
Make an Offer
Inquire Now Buy Now
Activate Pricing
Table Width: 5.2'
Table Length: 5.2'
Control: Omax
Pump: 20 HP
Max Cutting Pressure: 50,000 PSI
Footprint (With Pump & Controller): 13' 3" x 12' 5" (4.04 m x 3.78 m)
Height (With Whip Plumbing): 10' 6"
Operating Weight: 14,114 Lbs
Weight (Tank Empty): 6,000 Lbs
Z-Axis Travel (With Motorized Z-Axis): 12"
Table Size: 7' 4" x 5' 8"
Material Supports Slats: 4" x 14Ga Galvanized Steel
Max Supported Material Load: 300 lbs/sq ft (1,465 kg/sq meter)
Power Requirement: 3-Phase, 380-480 VAC ±10%, 50-60 Hz
Speed: 500 in/min (12.7 m/min)
Linear Positional Accuracy: ±0.003" (±0.076 mm)
(8) Eight Unopened 55 Lb Bags of Barton Water Jet Abrasive: 2021 Clemco Industries Corp. 6 cu ft. / 45 Gallon Blasting Media Hopper (Made in the USA)
Dell OptiPlex 7490 AIO Series Workstation / CPU with Maxim Intel-VISOR Software: Laminar Filter for Water Outflow
Omax M20 Waterjet Pump: Several New Unused Spare Parts
Wheeled Workstation / Tool Box
