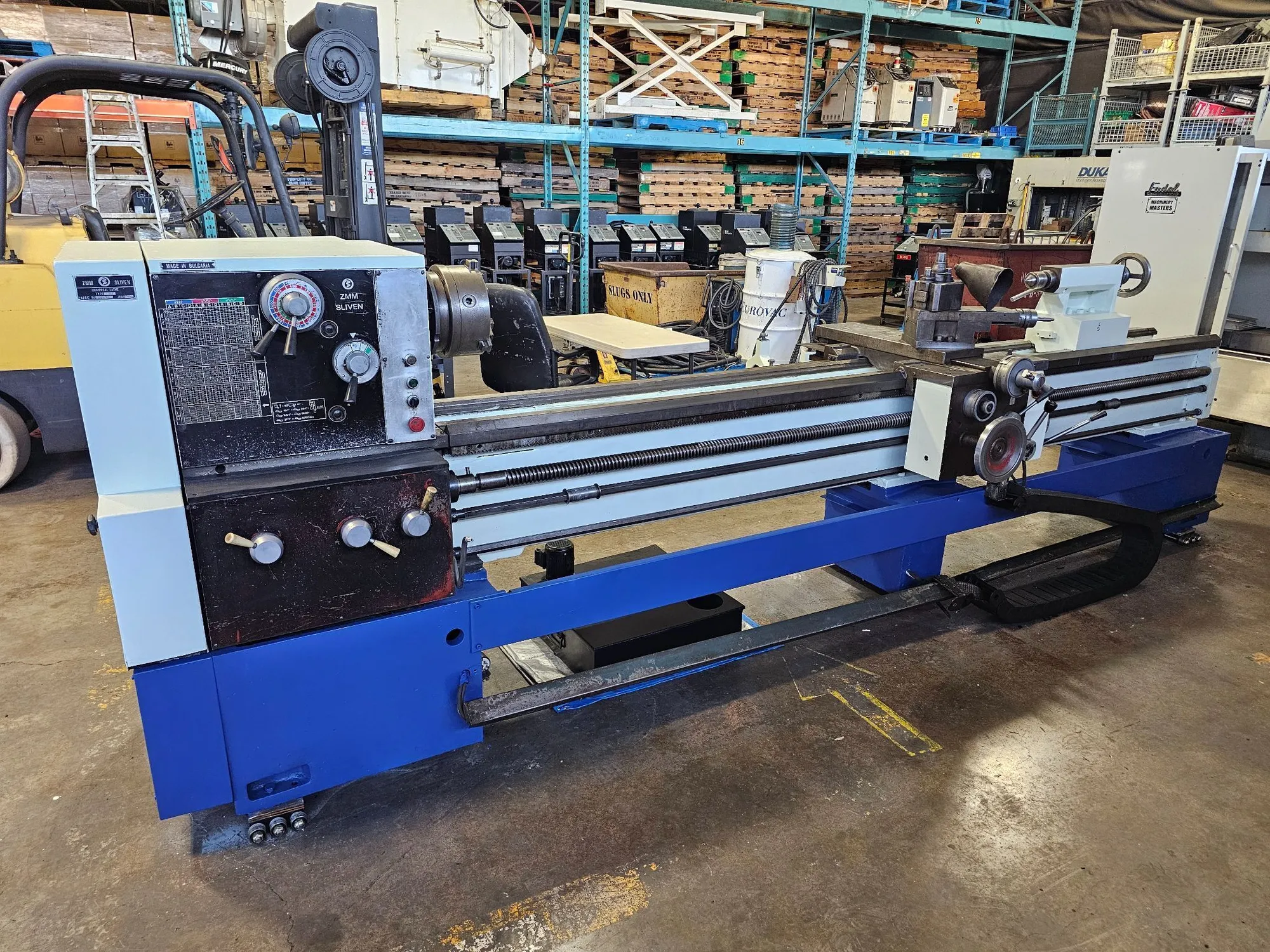

1994 ZMM Sliven 580 Engine Lathe, 3-Jaw 10" Chuck, Tailstock, Steady Rests
| Swing | 22.83" | 579.88 mm |
| Swing Over Cross Slide | 14.96" | 379.98 mm |
| Swing Over Gap | 30.7" | 779.78 mm |
| Chuck | 10" | 254 mm |
| Bed Width | 15.74" | 399.8 mm |
| Centers | 118" | 2,997.2 mm |
| Spindle Bore | 2.89" | 73.406 mm |
| RPM | 2,000 RPM | 2,000 RPM |
| Power | 10 hp | 7.5 kW |
| Longitudinal Feed Range | 0.0015 - 0.472 in/rev. | 0.0015 - 0.472 in/rev. |
| Cross Feed Range | 0.0007 - 0.2362 in/rev. | 0.0007 - 0.2362 in/rev. |
| Quill Taper | MT5 | MT5 |
| Quill Dia | 2.95" | 74.93 mm |
| Quill Travel | 9.05" | 229.87 mm |
| English Threads Range | 60 - 0.25 | 60 - 0.25 |
| Metric Threads Range | 0.5 - 120 | 0.5 - 120 |
| Made In | Bulgaria | Bulgaria |
| Dimensions | 180" X 45" X 64" | 180" X 45" X 64" |
| Weight | 7,936 lb | 7,936 lb |
Tailstock
(2) Steady rest
