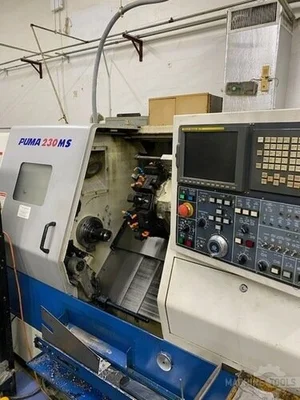

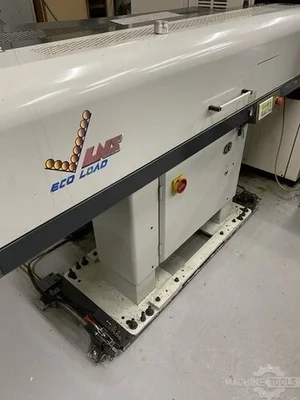

DOOSAN DAEWOO PUMA 230MSA CNC Turning Center (used) New 2002 w/LNS Eco Load mag bar feed, live tools, sub spindle, tooling, chip conveyor, mist collector. The 3J collet system is 1-3/4” max diameter. The spindle nose is A2-5 with a maximum bore of 53mm(2.09”).
| Swing | 21.7" | 551.18 mm |
| Machining Length | 20" | 508 mm |
| # Axis | 4 | 4 |
| Bar Capacity | 1.75" | 44.45 mm |
| Power | 15 hp | 11.2 kW |
| Max RPM | 6,000 RPM | 6,000 RPM |
| Turning Dia | 11.4" | 289.56 mm |
| Tailstock | No | No |
| Live Tooling | Yes | Yes |
| Sub Spindle | Yes | Yes |
| Weight | 9430 (LBS) | 9430 (LBS) |
Tooling will be
1) 2 single ID toolholders
2) 2 double ID toolholders
3) 2 single OD turning toolholders
4) 2 double OD turning toolholders
5) 1 single face turning toolholder
6) 1 cutoff toolholder
7) 2 live cross-drill toolholders
8) 2 live face-drill toolholders
9) Assorted size 3J collets for main spindle
