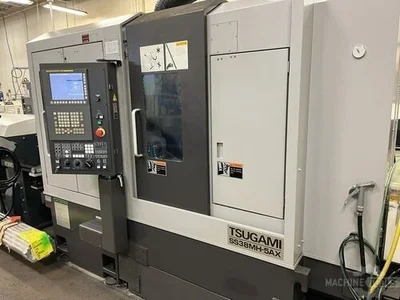

The Tsugami SS38MH-5AX sliding headstock lathe with B-axis is a chucker-convertible, high-performance automatic CNC lathe that offers full 5-axis simultaneous machining with a FANUC 31i-B5 control.
The SS38MH-5AX is the first Tsugami of its kind. This machine’s backworking overlap with live tool capability allows for multiple tools in the cut, and shorter cycle times. This extremely versatile machine weighs in at just over 15,000 lbs and is equipped with a total of 52 tools, including a 40 tool magazine, 10 tools on the back tool post, and an optional 2 tools on the deep hole drill holder. 5 modular type live tools on back tool post for optimum allocation of machining capability.
The Tsugami SS38MH-5AX makes it possible to machine the most complex shaped parts from barstock complete, in no time and corresponds to heavy-duty cutting by dual contact holder using CAPTO C4. The linear glass scales on the X1, Y1, and Z1 axis slide is provided as standard, for ensured high accuracy machining and repeatability.
| Spindle Hole Dia | 38 mm | 1.4961" |
| RPM | 7,000 RPM | 7,000 RPM |
Maximum Bar Stock 38 mm, 1.5 in

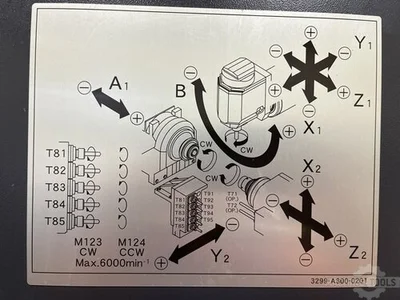

# Axes 8
Sliding Headstock / Guide Bushing YES
CONVERTIBLE: Run w/o Guide Bushing (chucker) YES
Max Headstock Stroke w/ Guide Bushing
Max Headstock Stroke w/o Guide Bushing 300 mm / 11.8 in
100 mm / 3.9 in
# Tool Positions (std / max) 52 std/max
# Live Tool Positions (std / max) 6 (5 on backworking, 1 on tool spindle)
Control FANUC 31i-B5
Main Spindle Speed 200 – 7,000 rpm
Sub Spindle Speed 200 – 7,000 rpm
Live Tool Speed 6,000 rpm on backworking,
20,000 rpm on tool spindle
Main Spindle Motor 5.5 kw (7.5 hp)
Weight 15652 lbs / 7,100 kg
Footprint: W x D x H 115.5 x 76.5 x 85 in
2,930 × 1,940 × 2,160 mm
● Max. speed of 20,000 min-1 and rigid tool spindle with B-axis
● Chucker-convertible: Corresponds to short and long workpieces by switching between guide bushing and guide bushless
● Back tool post with Y-axis.
● 40-tool magazine
● 5-axis simultaneously controlled processing
