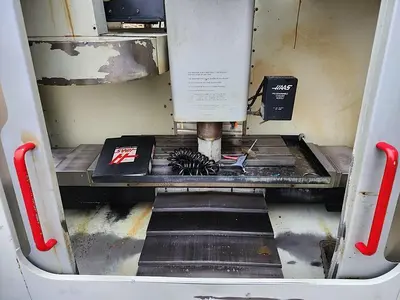

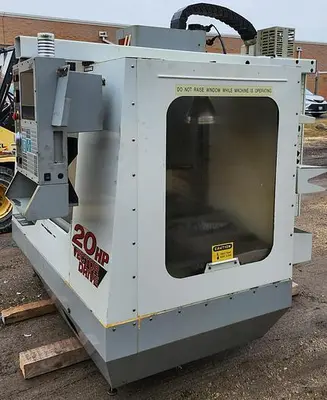

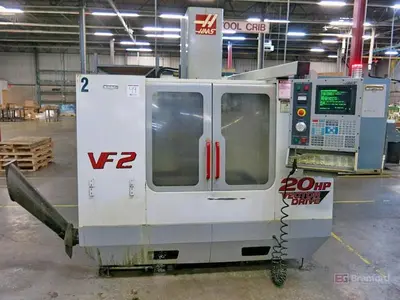

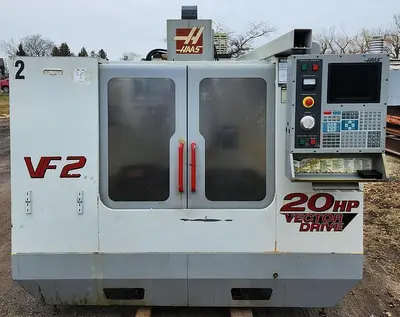

Haas Model VF-2B CNC Vertical Machining Center

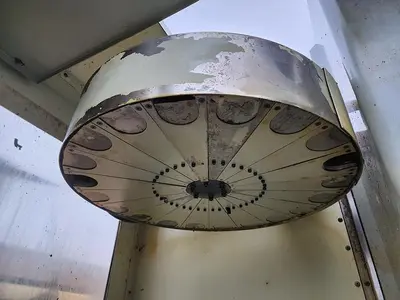

20-BT 40 Tool Holding Carousel
Haas Programmable Coolant Nozzle
ATC

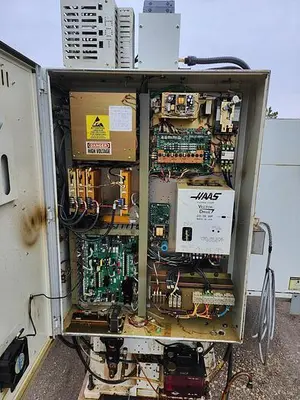

Haas Controls
20-HP Vector Drive
22,071-Hours Power On
5,446-Hours Cycle Time
1,399-Hours Feed Cutting Time

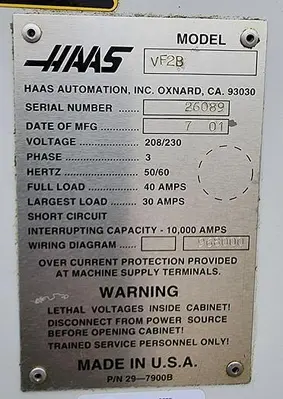

S/N 26089
2001
Integrated Haas Indexer Controls
208/230 Volt, 3 Phase
X Axis Travel: 30"
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Table Size: 36" x 14"
Max Table Load: 3,000 LBS
Spindle Motor: 20 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 40 CT
Tool Changer: 21 ATC
Max Torque 90 ft-lbf
Max Thrust X 2550 lbf
Max Thrust Y 2550 lbf
Max Thrust Z 4200 lbf
Max Tool Diameter 3.5"
Max Tool Weight 12 lb
Tool-to-Tool (avg) 4.2 s
Chip-to-Chip (avg) 4.5 s
Dimensions: 101" x 98" x 102"
| X | 30" | 762 mm |
| Y | 16" | 406.4 mm |
| Z | 20" | 508 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 20 | 20 |
| Taper | 40 | 40 |
| Table-W | 14" | 355.6 mm |
| Table-L | 36" | 914.4 mm |
