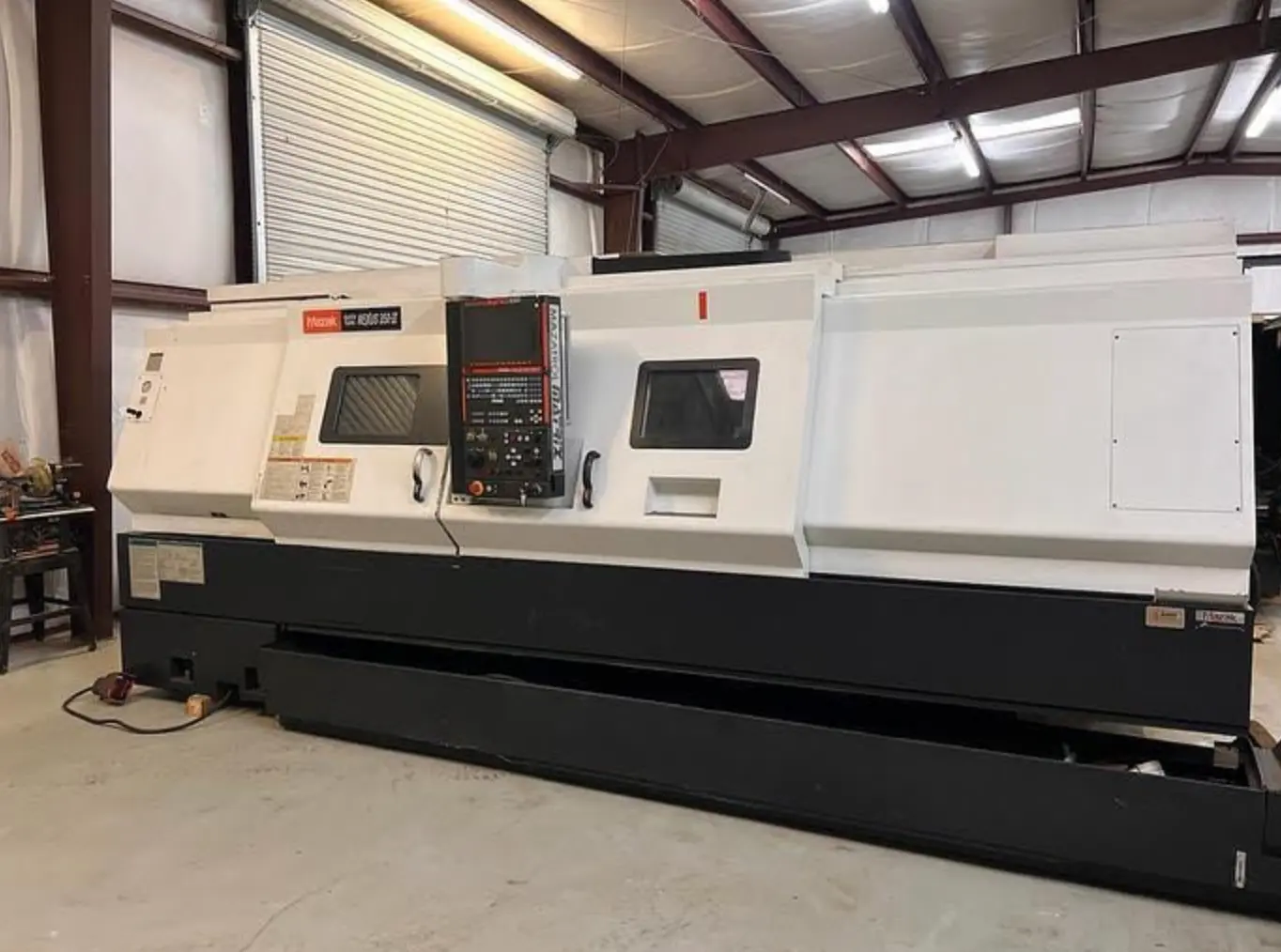

Used CNC lathe, equipped with Mazak Matrix Nexus, 12" thru-hole chuck, EIA/ISO input, 8607 hours; max swing 26.77", machining length 81.1". Features hydraulic pressure interlock, high-power coolant, and Windows XP OS.
| Swing | 26.77" | 679.96 mm |
| Machining Length | 60.712" | 1,542.1 mm |
| Chuck Size | 15" | 381 mm |
| Bar Capacity | 4.4" | 111.76 mm |
| Power | 40 hp | 29.8 kW |
| Max RPM | 3,300 RPM | 3,300 RPM |
| Turning Dia | 16.54" | 420.12 mm |
| Tailstock | Yes | Yes |
| Control | CNC (MATRIX NEXUS) | CNC (MATRIX NEXUS) |
| Dimensions | 200.98”L X 86.90”W x 85.24”H | 200.98”L X 86.90”W x 85.24”H |
| Weight | 24,900 LBS | 24,900 LBS |
Maximum swing 26.77
Maximum Machining Diameter 16.50′′
Standard Machining Diameter 10.39′′
Machining Length 81.1“
Spindle Nose A2-11
Spindle Bore 4.4′′
Bar capacity 4.00
Spindle Motor (40/30 MIN/CONT.)
Spindle Speed 3,300 RPM
Turret Type DRUM TURRET
Number of Tools 12
X-Axis Travel 8.85′′
Z-Axis Travel.(Bed Length 79.13 in”)
Rapid Traverse Rates X-Axis 1181 IPM
Rapid Traverse Rates Z-Axis 984 IPM
Tailstock Center MT. NO.5
Floor Space 200.98”L X 86.90”W x 85.24”H
Machine Weight 24,900 LBS
- Mazak Matrix Nexus
- 8607 Hours
- 12′′ Thru-Hole Chuck Pkg w/4′′ Bar Cap (BB-212a1115A Cylinder)
- EIA/ISO Input Function
- Operator Door Interlock
- Hydraulic Pressure Interlock
- ATLM
- High Power Coolant, 59 psi
-12 Position Drum Turret, Bolt on Style Turret
- Windows XP Operating System
- Hinge Style Chip Conveyor for 80′′
- Tailstock MT #5 w/Built in Live Center
