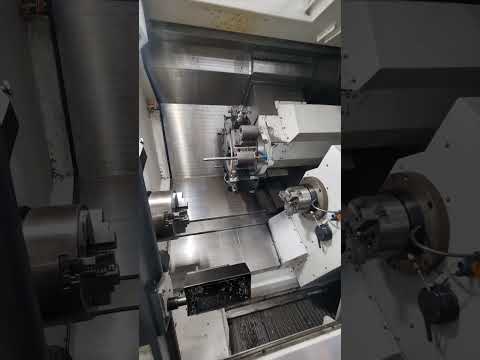

Explore high precision with this 2015 TAKISAWA TS-4000YS 5-Axis CNC Lathe. Featuring a 6-axis system, 750mm machining length, 10" chuck, and 6,000 RPM max speed. Powered by a 30 HP direct drive spindle. Enhanced with Fanuc Series 32i Model B control.
| # Axis | 6 | 6 |
| Machining Length | 750 mm | 29.528" |
| Chuck Size | 10" | 254 mm |
| Power | 22 kW | 29.5 hp |
| Max RPM | 6,000 RPM | 6,000 RPM |
| Turning Dia | 370 mm | 14.567" |
30 HP Direct Drive, Dual Coil Main Spindle Motor
15 HP Sub Spindle
10HP Milling Motor (more HP than standard)
120mm (4.72”) Y Axis Travel
Fanuc Series 32i Model B Control
10" 3-JAW KITAGAWA CHUCKBB-210 (MAIN)
6" 3-JAW KITAGAWA CHUCK B-206 (SUB)
Parts Catcher
Includes live tool holders, tool presetter, and chip conveyor.
Made in Japan
