800 Ton Newman, 80" x 40" heated platens, 12" DL, (6) heater zones, ideal for molding, laminating or embossing, #29507
| Tonnage | 800 T | 725.749 t |
| Heating Element | Electric | Electric |
| Up or Downstroke? | Upstroke | Upstroke |
| Heated Platen (L-R) | 80" | 2,032 mm |
| Heated Platen (F-B) | 40" | 1,016 mm |
| Daylight | 12" | 304.8 mm |

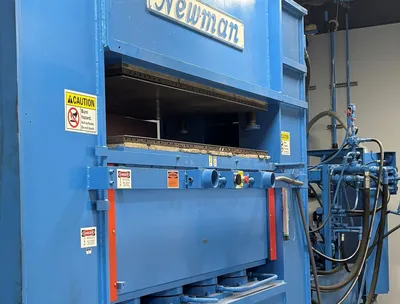

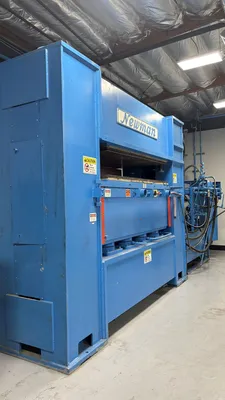

Used 800 Ton Newman Heated Platen Press
Model HP480
Hydraulic; Straight Side Design
Ideal for molding, laminating or embossing
460 volt three phase, 60 Hz, 182 amps
Capacity: 800 ton
Three stage platen: 80" wide x 40" long
Daylight press opening: 12"
Serial no. 14603
Stock no. 29507
Installed and Available to Inspect Under Power at a California Manufacturing Facility
(SPECIFICATIONS SUBJECT TO VERIFICATION)
(6) heater zones with independent controls
(8) Bottom hydraulic press cylinders
Electric heated platens
Freestanding hydraulic pump and tank
30 HP 230/460 volt three phase pump motor
Two hand safety operator cycle controls
Floor mounted operator control station
