| Swing | 23" | 584.2 mm |
| Machining Length | 23" | 584.2 mm |
| Chuck Size | 12" | 304.8 mm |
| Bar Capacity | 3" | 76.2 mm |
| Max RPM | 2,500 RPM | 2,500 RPM |
| Turning Dia | 11" | 279.4 mm |
| Tailstock | Yes | Yes |
| Dimensions | 102 x 73 x 78 | 102 x 73 x 78 |
| Weight | 11000 | 11000 |
Specifications (subject to buyer verification):
Maximum Swing: 23”
Maximum Turning Diameter: 11”
Maximum Turning Length: 23”
Bar Capacity: 3”
Chuck Size: 12”
Spindle Nose: A2-8
Spindle Speed: 30-2,500 RPM

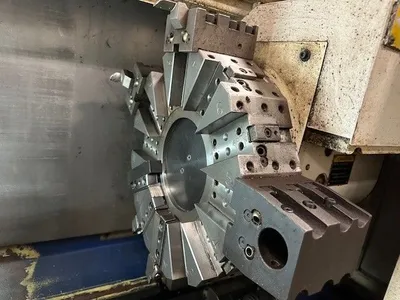

Turret Stations: 12
OD Tool Shank: 1”
ID Tool Shank: 1”
X – Axis Travel: 6”
Y- Axis Travel: 23”
Tail Stock: MT5
Dimensions: 102” x 73” x 78”
Weight: 11,000 lbs
Equipped With (subject to buyer verification):
Chip Conveyor
