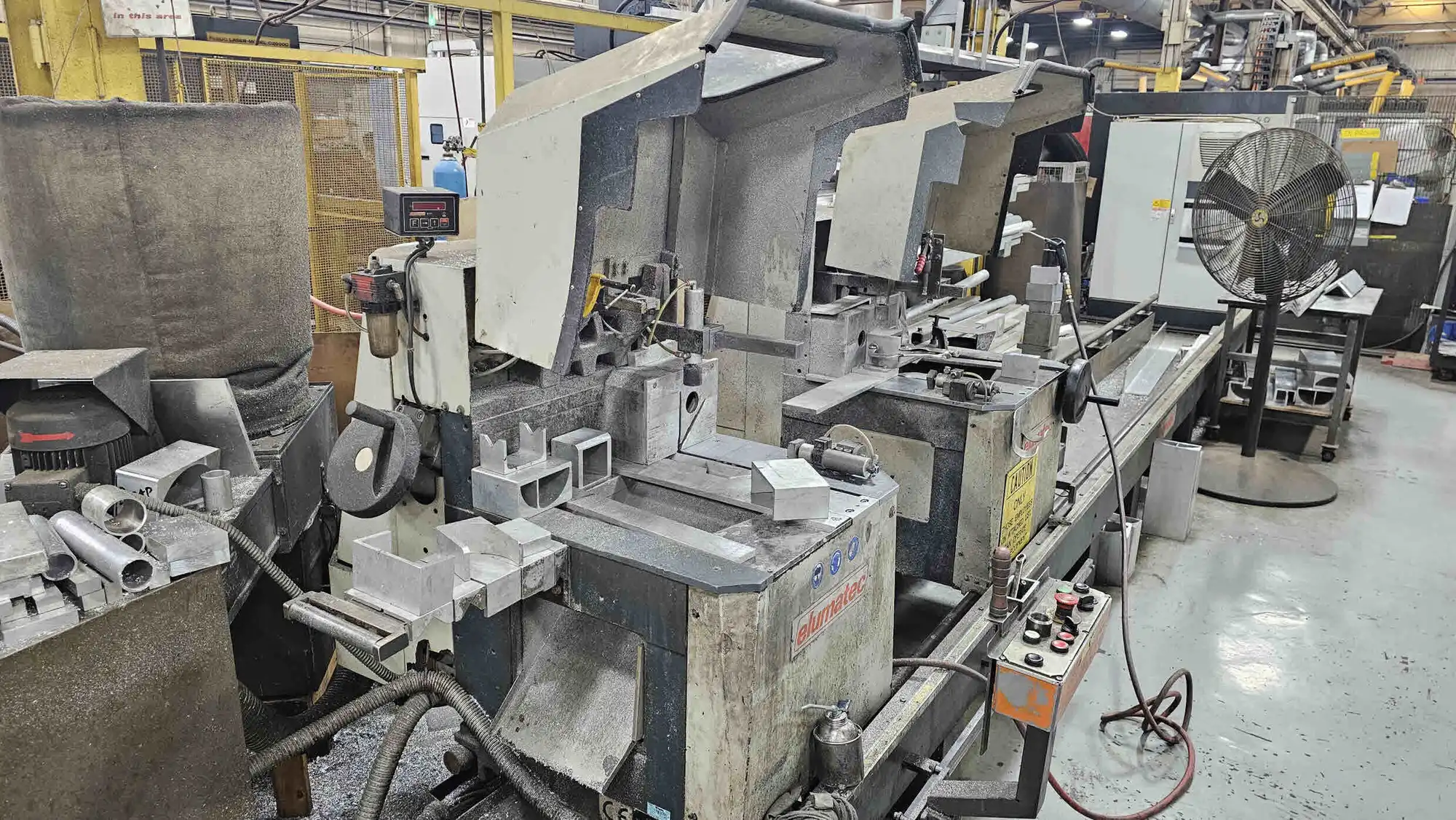

Machine is in Excellent Condition & Ready For Inspection.
| Blade Dia | 19.68" | 499.87 mm |
| Power | 11.1 kW | 14.9 hp |
| Dimensions | 250”L x 60”W x 59”H | 250”L x 60”W x 59”H |
| Weight | 5,000 Lbs | 5,000 Lbs |
Specifications:
Model - DG-142/02
Year - 09/2003
Saw Blade Diameter - 19.68”
Max Cutting Length - 252” (21FT)
Tilt Range Inwards - 90° to 45°
Cutting Capacity (90º) - 14.57”
Cutting Capacity (45º) - 14.57”
Blade Speed - 3400 RPM
Main Motor - 11.1 KW
Electrics - 240V/3PH/60HZ
Made In - Germany
Approximate Weight - 5,000 LBS
Approximate Overall Dimensions - 250”L x 60”W x 59”H
Equipped With:
E111 Digital Display On Each Saw
Manuel Roller Movement Of Saw
45 & 90 Degree Cutting
Pneumatic Clamping
Dual Dust Collector
Safety Hoods
Push Buttons
This Saw Is Designed For Aluminum Material
Ideal Saw For High Volume Production
