Swing | 20" | 508 mm |
Machining Length | 48" | 1,219.2 mm |
# Axis | 2 | 2 |
Chuck Size | 12" | 304.8 mm |
Bar Capacity | 2.3" | 58.42 mm |
Power | 10 hp | 7.5 kW |
Max RPM | 1,800 RPM | 1,800 RPM |
Turning Dia | 16" | 406.4 mm |
Tailstock | Yes | Yes |
Live Tooling | No | No |
Sub Spindle | No | No |
Control | CNC (Haas) | CNC (Haas) |
Dimensions | 108.5″ x 68.5″ x 83.0″ High | 108.5″ x 68.5″ x 83.0″ High |
Weight | 4480 lbs. Approx. | 4480 lbs. Approx. |

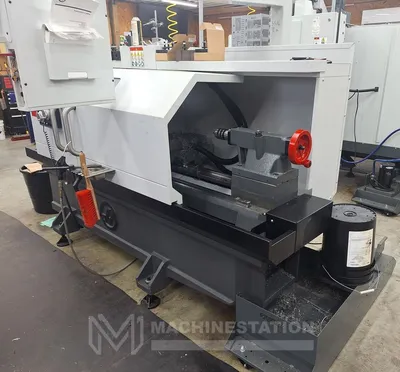

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
Specifications:
Capacity:
Chuck Size : 12.0″
Max Turning Diameter (with tool post) : 16.0″
Max Turning Length (with tool post) : 48.0″
Max Over Front Apron : 20.0″
Max Over Cross Slide : 11.0″
Distance Between Centers : 48.0″
Travels:
X Axis Travel : 8.0″
Z1 Axis Travel : 48.0″
Feedrate:
Rapid Traverse X Axis: 450 IPM
Rapid Traverse Z Axis: 450 IPM
Spindle:
Spindle Nose: A2-6
Spindle Bore: 2.30″
Spindle Speed: 1800 RPM
Spindle Motor: 10 HP
Tailstock:
Tailstock Type: Manual
Taper: MT-4
General:
Air Requirement: 4 scfm @ 80 psi
Machine Dimensions: 108.5″ x 68.5″ x 83.0″ High
Machine Weight: 4480 lbs. Approx.
Haas CNC Control
12″ 6-Jaw Manual Chuck (Upgraded $1995 value Included)
1800 RPM, A2-6 Spindle (Upgraded $5295 value Included)
10 HP Spindle Drive
Quick Change Tool Post
Manual Steady Rest (Upgraded $1895 value Included)
Manual Tailstock (Upgraded $3095 value Included)
Electronic Handwheels (Upgraded $1495 value Included)
Rigid tapping (Upgraded $1895 value Included)
