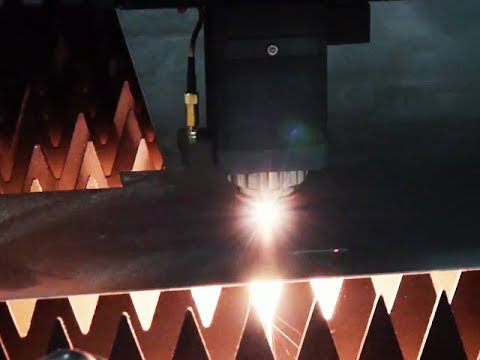

Laguna CBX fiber laser cutting system designed and optimized for quick and reliable precision cutting of ferrous and nonferrous metals. The CBX is extremely easy to run and maintain. The compact footprint minimizes the space requirements needed and maximizes productivity. We do not take any shortcuts as the CBX will come standard with an IPG photonics resonator and US support.
Features:
• 36″ x 52″ Working Area
• Laser Power Starting At 1KW Up To 3KW
• Rapid Travel Speed: 1,200in/min
• Drive Method Ball Screw
• Reposition Accuracy: ±0.02mm
• Min. Line Width: 0.01mm
| Sheet-W | 36" | 914.4 mm |
| Sheet-L | 52" | 1,320.8 mm |
| Wattage | 3 kw | 3 kW |
| IPM | 1200 ipm |
