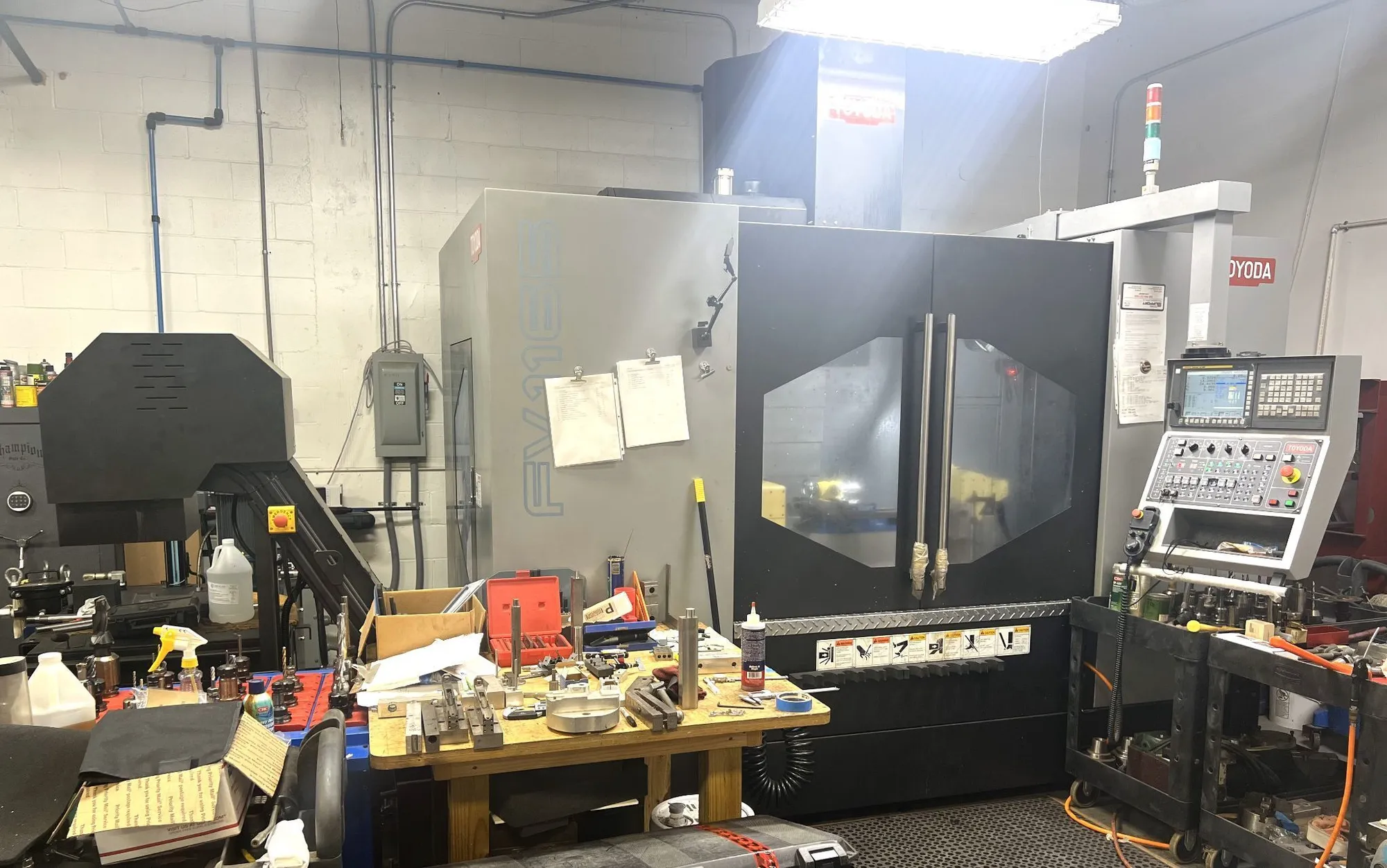

592 Cutting Hours, 5th Axis Ready, (2) Nikken Rotary Tables & Tailstocks, 1,000 PSI Coolant Thru Spindle, Probing, Fanuc. Installed in 2019 and equipped with geared head and box way construction, this originally owned 2018 Toyoda FV-1165 cnc vertical machining center has been cutting aluminum and also includes z-axis riser, two manual tailstocks, dual augers, and chip conveyor.
| TABLE LENGTH | 51.2" | 1,300.5 mm |
| TABLE WIDTH | 25.6" | 650.24 mm |
| TABLE CAPACITY | 2,425 lb | 1,100 kg |
| X-AXIS TRAVEL | 43.3" | 1,099.8 mm |
| Y-AXIS TRAVEL | 25.6" | 650.24 mm |
| Z-AXIS TRAVEL | 23.6" | 599.44 mm |
| SPINDLE SPEED | 8,000 RPM | 8,000 RPM |
| SPINDLE MOTOR | 25 hp | 18.6 kW |
| SPINDLE TAPER | CAT 40 (BIG PLUS) | CAT 40 (BIG PLUS) |
| TOOL CAPACITY (ATC) | 40 | 40 |
| RAPID TRAVERSE - X AXIS | 1,181 in/min. | 30 m/min. |
| RAPID TRAVERSE - Z-AXIS | 945 in/min. | 24 m/min. |
| CUTTING FEEDRATE | 945 ipm | |
| ROTARY OR TRUNNION | Yes | Yes |
| APPROX MACHINE WEIGHT | 16,000 lb | 7,257.5 kg |
FANUC Oi-MD CNC CONTROL
HP GEARED DRIVEN SPINDLE
HARDENED & GROUND BOX WAYS
4TH & 5TH AXIS DRIVES & WIRING
7" NIKKEN ROTARY TABLE - LEFT
7" NIKKEN ROTARY TABLE - RIGHT
(2) 4.92" NIKKEN MANUAL TAILSTOCKS
5C NIKKEN MANUAL LOCK FIXTURE
PROBING SYSTEM
THROUGH SPINDLE COOLANT (1,000 PSI) UPGRADE
7.87" RISER (200MM)
PROGRAMMABLE AIR BLAST
CHIP WASH DOWN COOLANT
CHIP WASH GUN
COOLANT SYSTEM
DUAL CHIP AUGER (EACH SIDE OF TABLE)
LIFT UP CHIP CONVEYOR (47")
SPINDLE AIR COOLER
400 BLOCK LOOK-AHEAD UPGRADE
RIGID TAPPING
** ORIGINAL OWNER
** MACHINE CUTTING PRIMARILY ALUMINUM
** MACHINE INSTALL DATE: 2019
** MACHINE MANUFACTURE DATE: JULY, 2018
** AS OF FEBRUARY, 2025 - CUTTING TIME HOURS: 592
** REPLACEMENT COST NEW AS EQUIPPED: 270,000+
** VISES AS PICTURED NOT INCLUDED
** IN PLANT, UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
