TRUMPF TRULASER 3040 FIBER WITH LIFTMASTER COMPACT, NEW: 2017
4,000 WATTS
6.5' x 13' CUTTING TABLE
| Sheet-W | 78.74" | 2,000 mm |
| Sheet-L | 157" | 3,987.8 mm |
| Wattage | 4000 w | 4,000 W |
| IPM | 6693 ipm | |
| Type | FIBER | FIBER |
| Control | CNC (SIEMENS SINUMERK 840D) | CNC (SIEMENS SINUMERK 840D) |
MAX. LASER OUTPUT: 4,000 WATTS
LASER TYPE: FIBER
MOTION SYSTEM: FLYING OPTIC
WORKING RANGE:
- X-AXIS: 157.48"
- Y-AXIS: 78.74"
MAX. SIMULTANEOUS SPEED: 6,693 IPM
MAX. WORKPIECE WEIGHT:
- STANDARD PALLET: 4,409 LBS
- HEAVY DUTY PALLET: 7,275 LBS
MAX. SHEET THICKNESS:
- MILD STEEL: 0.8661"
- MILD STEEL WITH CUTTING PACKAGE: 0.9843"
- STAINLESS STEEL: 0.7874"
- STAINLESS STEEL WITH CUTING PACKAGE: 1.378"
- ALUMINUM: 0.7874"
- COPPER: 0.315"
- BRASS: 0.315"
MACHINE DIMENSIONS: 441"(L) x 251"(W) x 86.6"(H)
MACHINE WEIGHT: 31,526 LBS
SIEMENS SINUMERIK 840D CONTROL
TRUMPF TRUDISK 4001 FIBER ENGINE
CHILLER
AUTO PALLET SHUTTLE

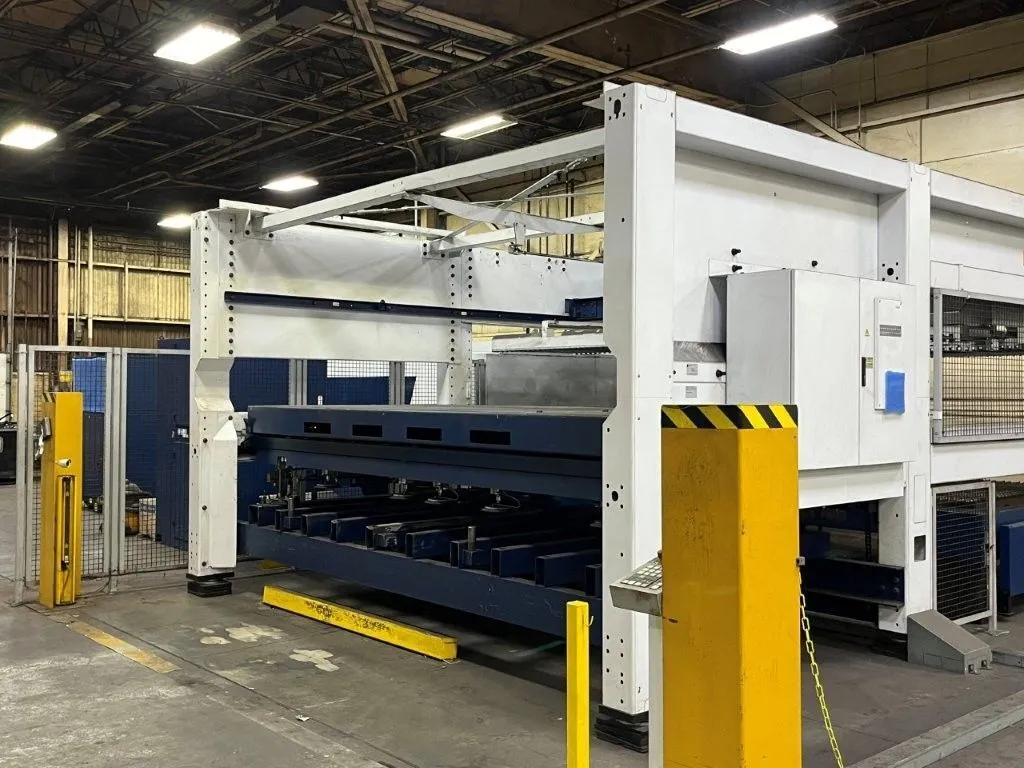

LIFTMASTER COMPACT LOAD/UNLOAD
