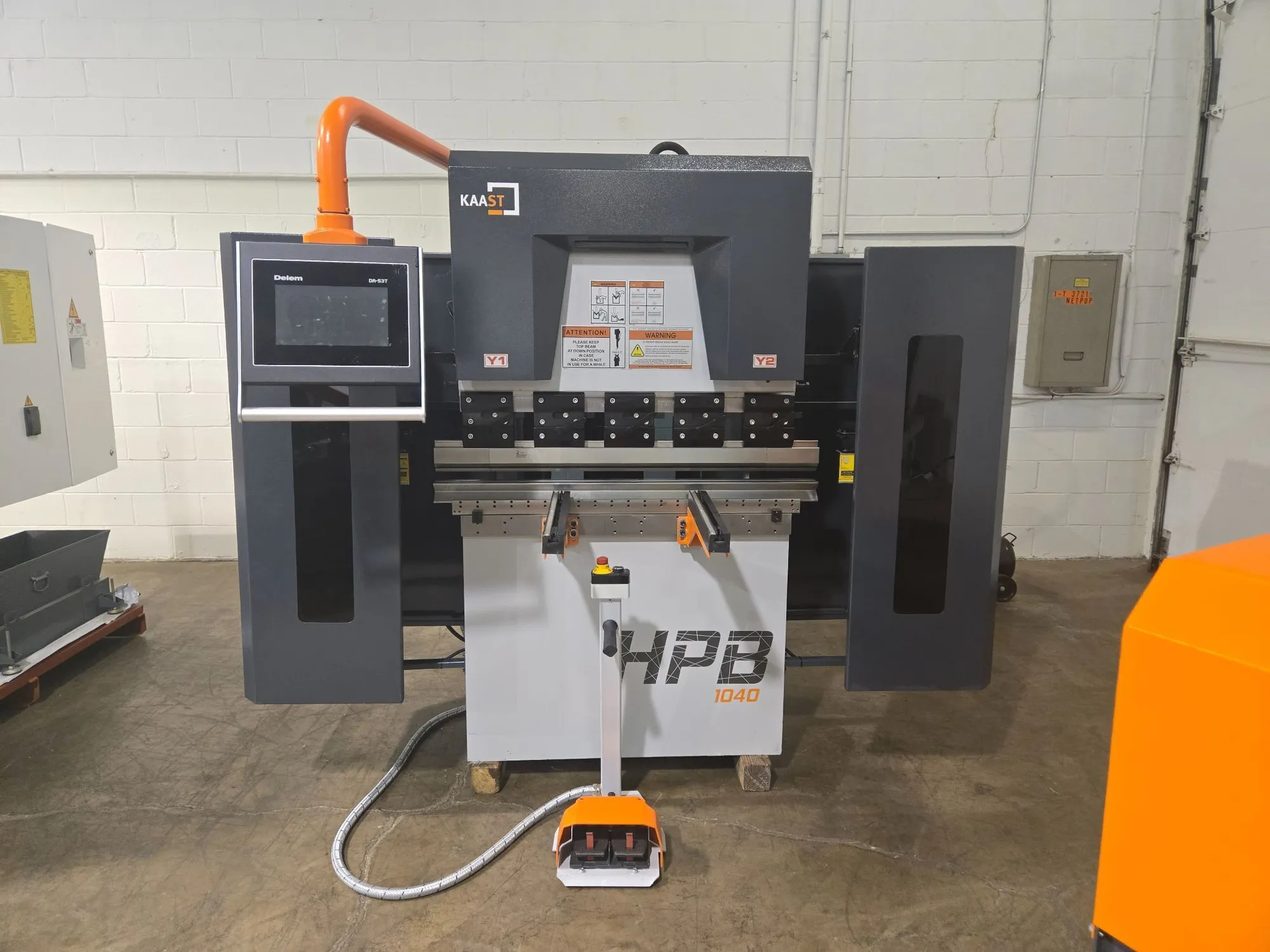

For sale: 2024 Kaast Press Brake, model HPB CNC 1040. Ideal for precision bending with 40-ton capability. Features include a 39.4" overall length, 31.5" between housings, and 5.1" stroke. Showroom Model Machine.
| Tonnage | 40 T | 36.287 t |
| Overall Length | 39.4" | 1 m |
| Between Housings | 31.5" | 0.8 m |
| Stroke | 5.1" | 129.54 mm |
| # Axis | 3 | 3 |
| Control | CNC (DELEM DA-53T) | CNC (DELEM DA-53T) |
| Dimensions | 91"x77x"73" | 91"x77x"73" |
| Weight | 4080lb | 4080lb |
AKAS Safety Laser
Adjustable height and sliding front
support arms
Top and bottom tools are surface
hardened by special treatment
Promecam quick clamping system
Delem DA-53T
CNC controlled strong 800mm back
gauge
410 mm (16') throat depth
2-piece back gauge fingers
Scales in metric and inches
Foot pedal is produced according to CE
standards and suitable for single and
multiple bendings
2 photocells are placed facing each
other for rear and side guards
Covers for cylinders and top beam
