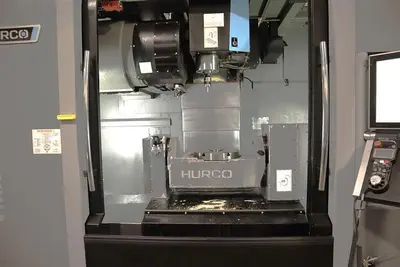

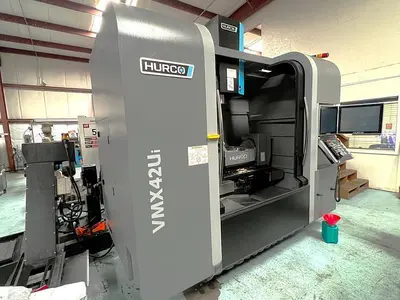

USED 2016 HURCO VMX-42Ui

Overview
Manufacturer:
HURCO
Model:
VMX42UI
Year:
2016
Stock #:
119526
Status:
For Sale
Description

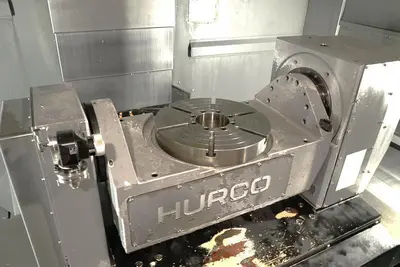

5-Axis Trunnion Style Machining Center

Specifications
X42.01"1,067.1 mm
Y24.01"609.85 mm
Z20.5"520.7 mm
# Axis55
Power24 hp17.9 kW
RPM12,000 RPM12,000 RPM
# ATC4040
TaperCAT 40CAT 40
ControlCNC (Hurco WinMax w/Ultimotion)CNC (Hurco WinMax w/Ultimotion)
Dimensions179"x148"x118"179"x148"x118"
Weight15,752 lbs15,752 lbs
Equipped With

Simultaneous 5 Axis Capability
Coolant Through the Spindle

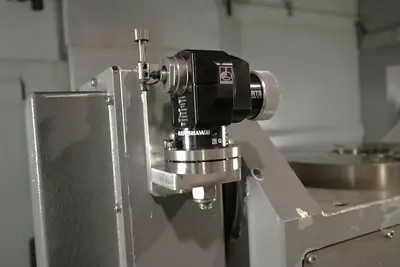

Renishaw RTS Contact Tool Probe and RMP600 Part Probe
Chip Conveyor
Centerline Probing
Mist Away Variable Speed Mist Collector
Flood Coolant System with Grundos Circulation Pump
Spindle Air Blast
Status Lights
Remote Jog Handle
Advanced Verification Graphic
Enhanced DXF File Transfer Ability
NC Productivity Package
Ultipockets
Insert Pockets
Rigid Tapping
Helical Ramp
NC Conversational Merge
Select Surface Finish Quality
Tool & Material Library
UltiMotion
Tool Change Optimization
MaxUI
Touch Screen Control
Ethernet Interface
USB Port Interface
Floppy Disk Drive
RS-232 Interface

True 5 Axis Design, not a 3 + 2 Design like others
All Available Manuals

Shipping Brackets

230V Electrics

Winmax Version V10.01.131.08

**Machine On Hours 12,494**

**Machine Spindle Hours 6,326**

$2,200 to Prep & Load onto a Truck
