| X Axis | 30" | 762 mm |
| Y Axis | 16.14" | 409.96 mm |
| Z Axis | 20.08" | 510.03 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Taper | 40 | 40 |
| Table-W | 16.14" | 409.96 mm |
| Table-L | 43.31" | 1,100.1 mm |
| # Axis | 4 | 4 |
| Control | CNC (Mazatrol 640M Nexus) | CNC (Mazatrol 640M Nexus) |
| Dimensions | 102.3″ x 101.32 x ” High | 102.3″ x 101.32 x ” High |
| Weight | 11700 lbs | 11700 lbs |

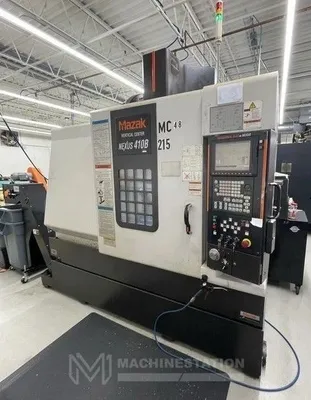

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
Features:
Mazatrol 640M Nexus CNC Control
40 Taper Spindle
PCMCIA Card Slot
MPG Control
Note: Tooling and Vices are not included with Machine
Travel:
X-Axis: 30.00″
Y-Axis: 16.14″
Z-Axis: 20.08″
Rapid Traverse Rates Axis: 1417 IPM
Cutting Feed Rates: 987 IPM
Spindle Nose to Table (Min.- Max.): 5.9″ – 26″
Table
Length: 43.31″
Width: 16.14″
Max Weight on Table: 1102 lbs
Spindle:
Taper Size: 40
Speed Range: 12000 RPM
Spindle Power: 20 HP
Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Weight: 17.6 lbs
Max Tool Dia: 3.25″ – 4.92″
Max Tool Length: 13.78″
Tool Changing Time : 1.3 Seconds
General:
Air Required: 100 psi, 4 scfm
Power: 220v / 30 kva / 3-Phase
Overall Dimensions: 102.3″ x 101.32 x ” High
Weight: 11,700 lbs
4th Axis Rotary Table with 5C Nose
12,000 RPM High Speed Spindle
30 Station Automatic tool changer
Coolant Tank and Pump
Jorgensen Chip Conveyor
