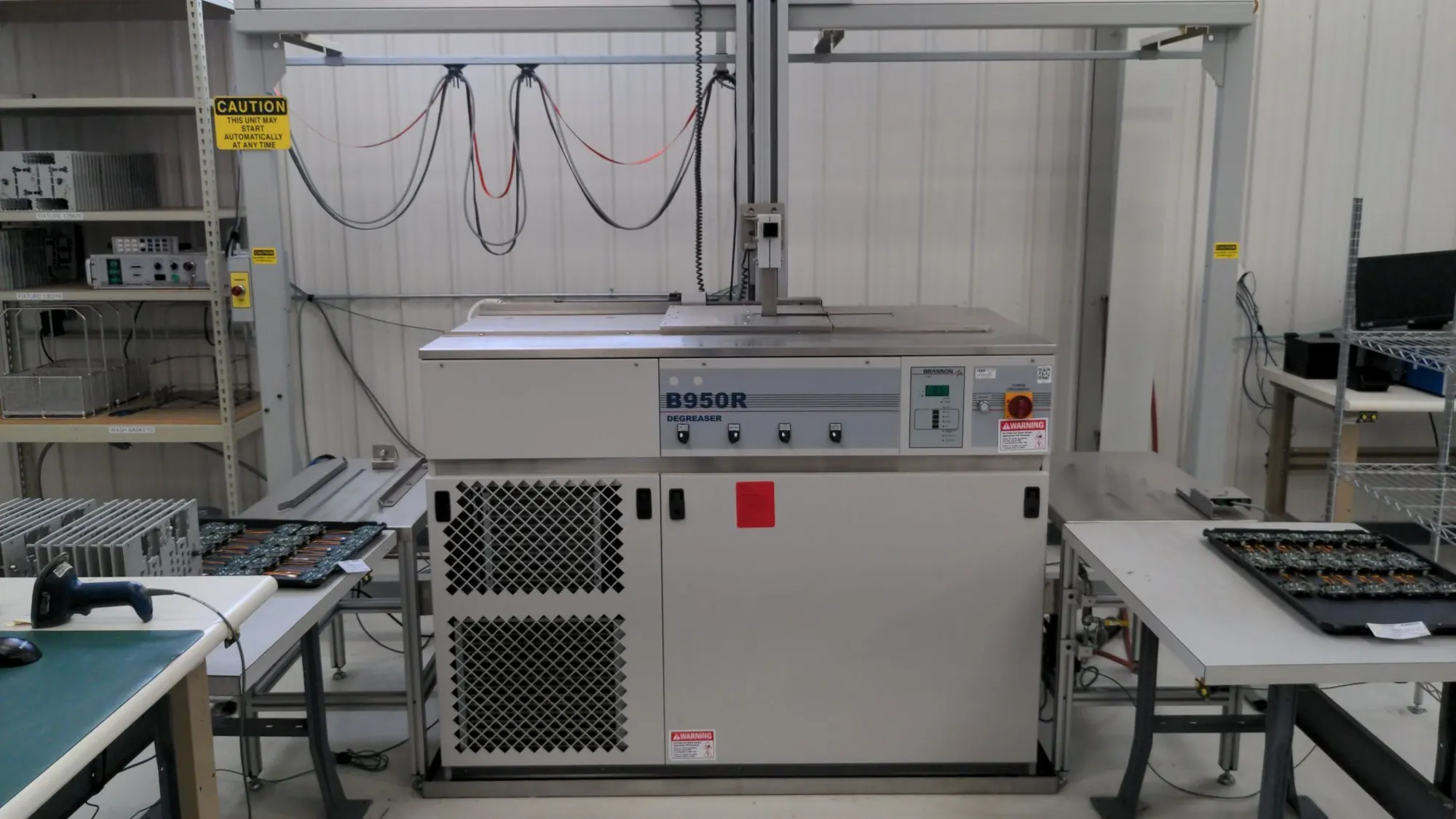

Branson Automatic Ultrasonic Degreaser System
Model #: B950RS CO SOLVENT
Date of Mfg: 2013
S/N: 0-5884A-13
TDR-15 Automatic Loading Arm System
Two Axis Dimensional Robot 150"H 38"V Travel
15kg Batch Transport
Ultrasonic Controller
Loading Baskets
208V, 3 Ph
Features
Freeboard ratio of greater than 124% to eliminate diffusion losses
Refrigerated primary condensing coil to condense the bulk of the solvent vapors
Refrigerated sub-zero freeboard condenser to provide a cold air barrier minimizing fugitive losses
Sliding cover to eliminate drafts and help seal the unit during periods of inactivity.
Offset boiling sump with liquid level control
Bag filter to minimize solvent loss during maintenance
Cooled internal water separator to reduce losses
Stainless plumbing for solvent-wetted areas
Includes optional Automated hoist system with automated lid.
40 Khz Ultrasonics
Specifications
Solvent capacity 26 gallons
Working dimensions 12" x 16" x 12"D
Watts of Immersion Heat 4000 watts
Distillation rate 14 gph
Load capacity 400lbs.steel/hr
Vapor zone 32.7"L X 19.2"W X 12"D
Input power 208V 3 phase 37A
