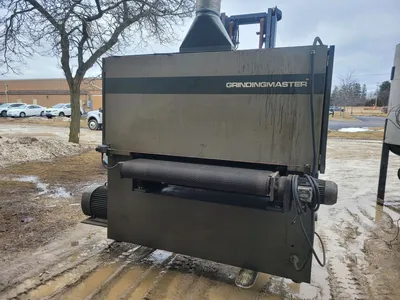

Grindingmaster Pass Thru Belt Finishing / Deburring Machine
Model #: MCSB-1300
440V, 3 ph
26 kW Motor
52'' Wide Belt
S/N: K036604
Working Width: 52"
Maximum Material Thickness: 5"
Conveyor Speed: 9 - 59 Feet per Minute
EQUIPPED WITH:
Sanding Head
Belt Oscillation
Brush Oscillation
Belt Tracking
Hold Down Rolls
Air Requirement: 70 - 100 PSI
30 HP Main Motor
Wired for 3 Phase, 60 Cycle, 440 Volts
Overall Size: 117" LR x 76" FB x 76" High
Includes Grivna 2200 CFM Wet Type Dust Collector
Water type Dust Collector
Model #: 2200
S/N 95-1249
7.5 Hp. 240/440 Volt 3 ph.
Currently wired for 440 Volt
Approx. 2200 CFM
